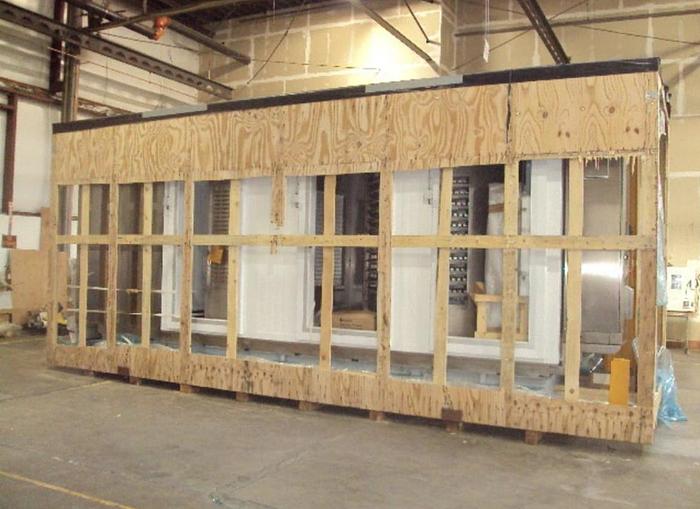

Twist Spiral Air Cooler SMPP 15

Twist Spiral Air Cooler SMPP 15

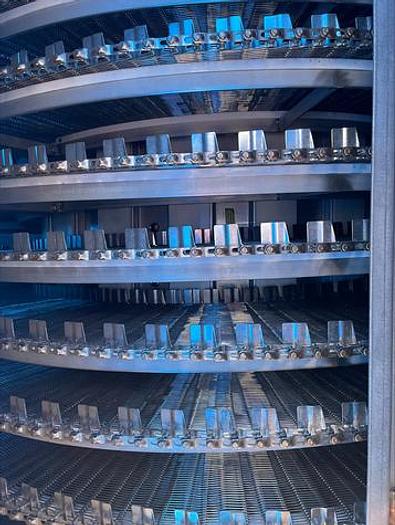

Conveyor Belt Unit:

• Drive system
• Support structure of conveyor belt
• Flexible conveyor belt
• Conveyor Belt safety system

Air Cooling Group:

• Evaporators
• Ventilation unit

Insulated Cabin:

• Insulated panels modular
• Base
• Standard Finish
• Insulated Doors

Automatic Washing System

Chiller with screw refrigeration compressors

Electric Panel Board

Technical Data:

• Treatment times range 15 ÷ 120 min
• Useful surface 15 m2

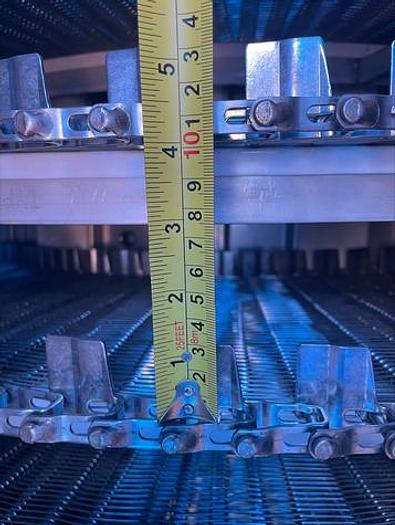

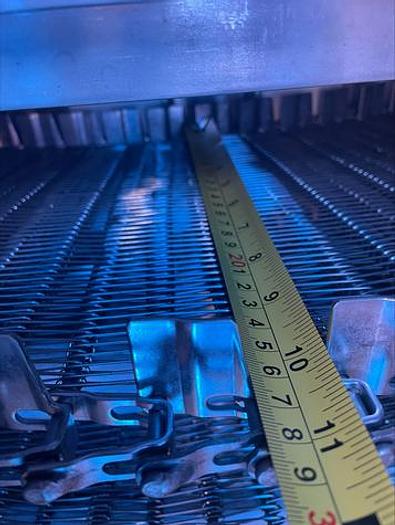

• Belt width: 250 mm
• Product height: max 60 mm

Consumption:

• Installed electric power 10,00 kW
• Water at 18 °C \ m3/h
• Dry saturated steam at 4 bar \ kg/h
