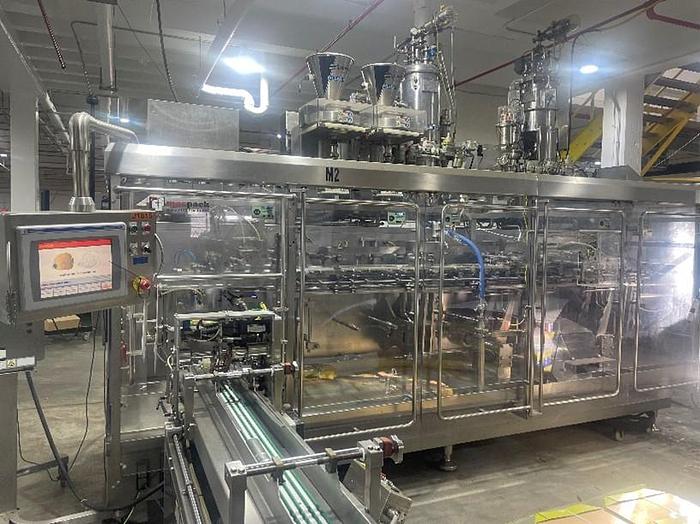

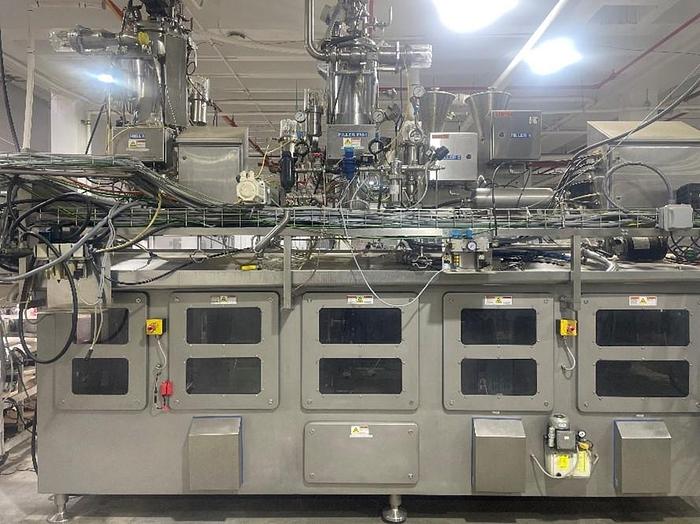

Mespack H-260 SC FFS Machine

Mespack H-260 SC FFS Machine

The H-260 SC machine is formed by a pouch feeding conveyor in one or two lanes, a pick and place to transfer the pre-made pouches to a walking beam system and the main module where they will be open, filled and top sealed. This model is equipped with an independent electrical cabinet with a 12" color touchscreen.

• Minimum dimension: 70 x 100 mm
• Maximum dimension: 190 x 300 mm
• Maximum volume: 1000 c.c.
• Production speed: 80 pouches / minute
• Dosing stations: 3
• Electric consumption: 20 kW
• Pneumatic consume: 500 l / minute
• Weight: 2100 kg
• Working temperature Between 5°-35° C
• Working level above sea Maximum 3.000 m
• Working level humidity Maximum 80%
