Pilot Pulp Molding Equipment

Pilot Pulp Molding Equipment

Description

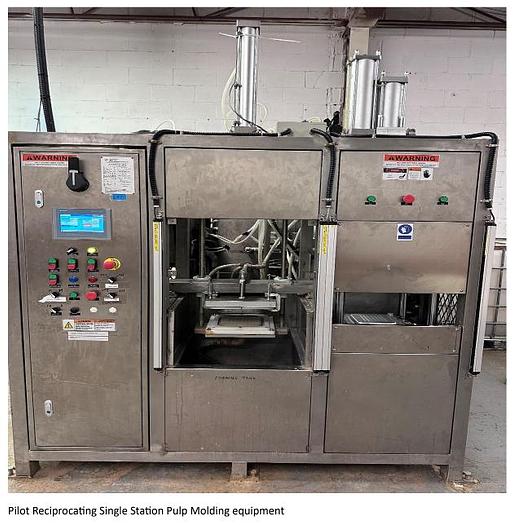

The reciprocating single station pulp molding equipment includes:

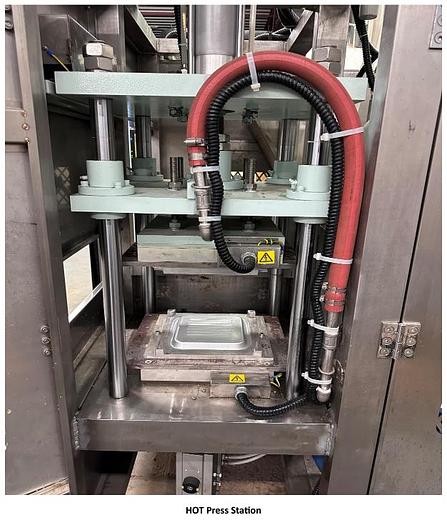

  1. Hot press station
  2. Hydra pulper with 30L tank capacity

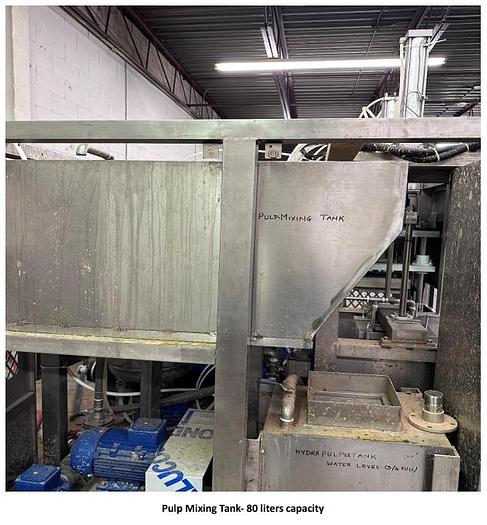

  3. Pulp mixing tank with 80L capacity

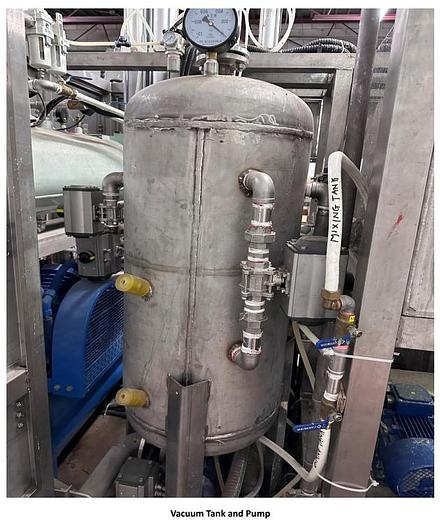

  4. Vacuum tank and pump

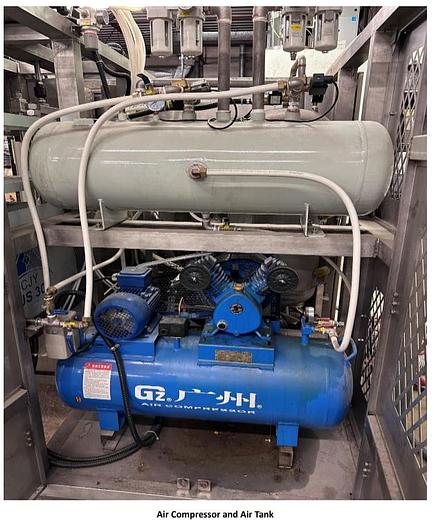

  5. Air compressor

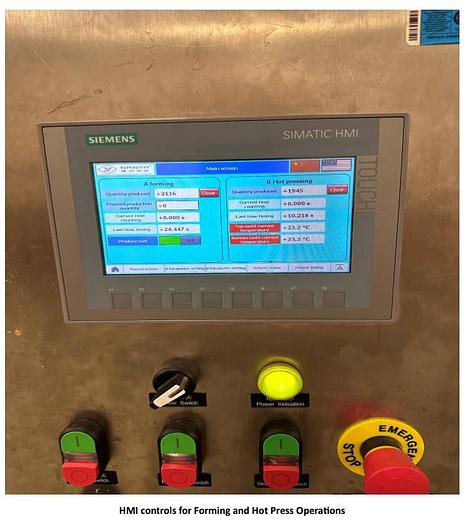

  6. PLC | HMI Controls, for forming and hot press operations


Pulping batch capacity: 3.5 kg dry cardboard weight.

Hot press planum: 12" x 12"

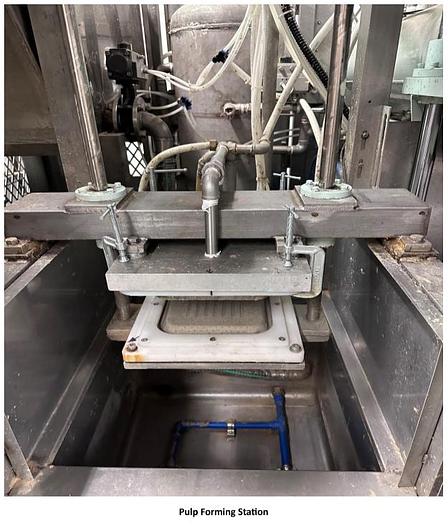

Pulp forming station has a planum size of 12" x 12", and includes a 30L forming tank. The forming parameters are controlled by PLC | HMI

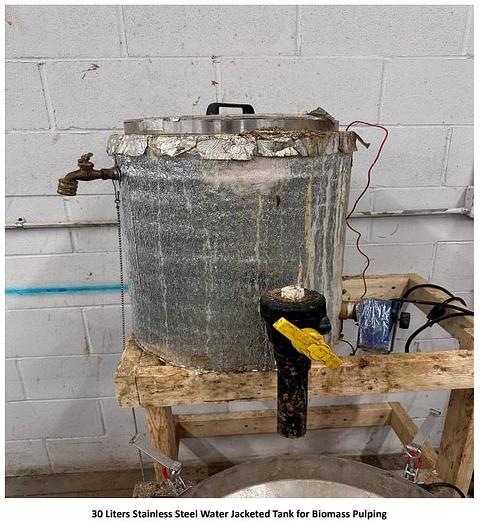

SS water-jacketed tank for Biomass Pulping


60 Hp Single Stage Pulp Refiner

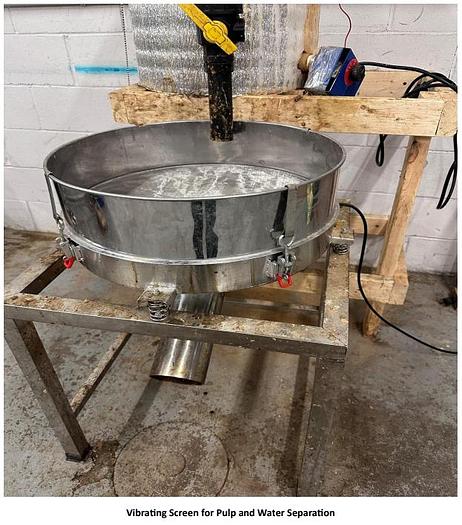

Vibrating Screen for Pulp and Water Separation



Specifications

ManufacturerPilot
ConditionUsed
Stock NumberB2592CAMBO
