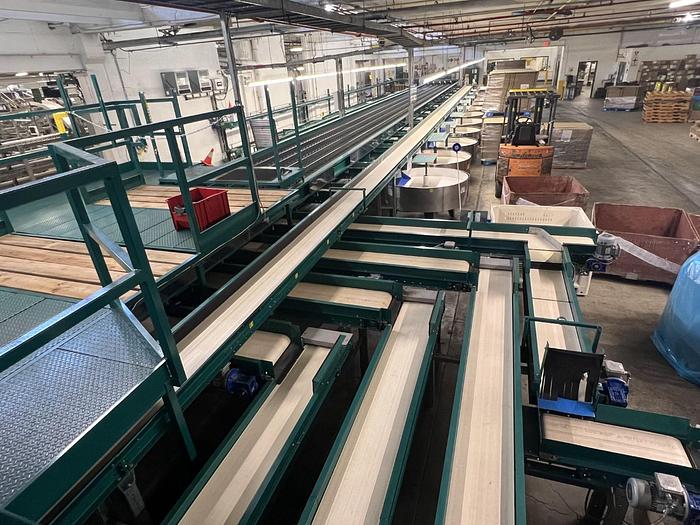

Complete Pear Processing Packaging Line

A complete pear processing packaging line with one-way sizer, tubs, conveyors, rotary tables and more. It will clean, sort, and size, as well as box or crate the fruit.

4'L Plastic Belt Conveyor

Plastic link belt: 63”W

Powered by a ½ hp CSD motor.

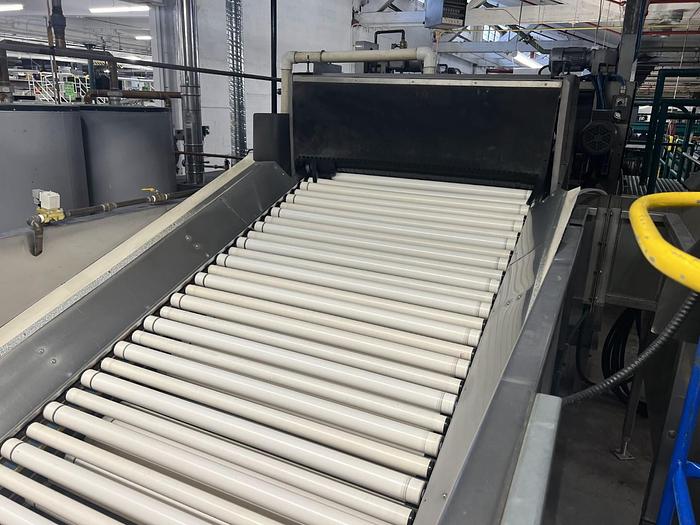

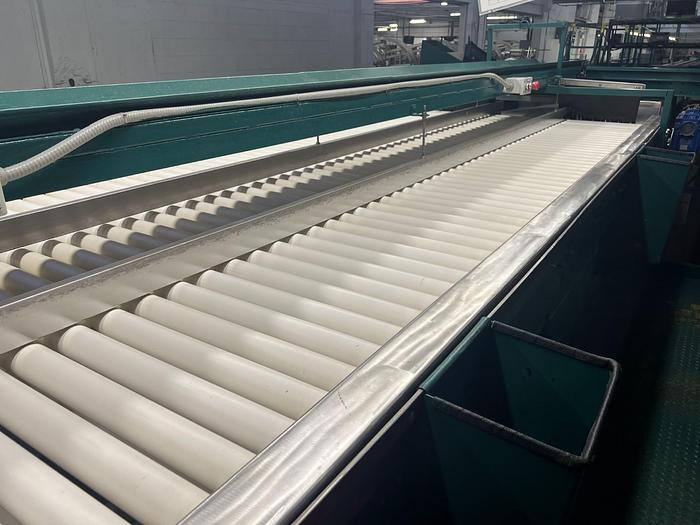

15'L Roller Grade Table

Rollers: 60”W

2” PVC rollers with sleeves

Includes:

• ½ hp CSD motor
• 1-1/2 hp motor and 440V AC inverter drive
• Power Roll Turner, powered by a ½ hp DC motor
• 10 drop chutes
• Two dividers
• Light supports

6'6"L Plastic Belt Conveyor

Plastic link belt: 72"W

Powered by a ½ hp CSD motor

17'6"L Slime Line Belt Conveyor

Two-ply rubber-molded vinyl belt: 12"W

Powered by a ½ hp CSD motor

3'9"L Belt Conveyor

Two-ply rubber-molded vinyl belt: 12"W

Powered by a ½ hp CSD motor

Brush let-down delivery

14'6"L Belt Conveyor

Two-ply rubber-molded vinyl belt: 12"W

Powered by a ½ hp CSD motor

Galvanized construction with high side

9'3"L Belt Conveyor

Two-ply rubber-molded vinyl belt: 12"W

Powered by a ½ hp CSD motor

Galvanized construction with high side

7'9"L Cleated Belt Conveyor

Vulcanized 2" cleated belt: 12"W

Powered by a ½ hp CSD motor

Two-side extension(s), flip-flop chute

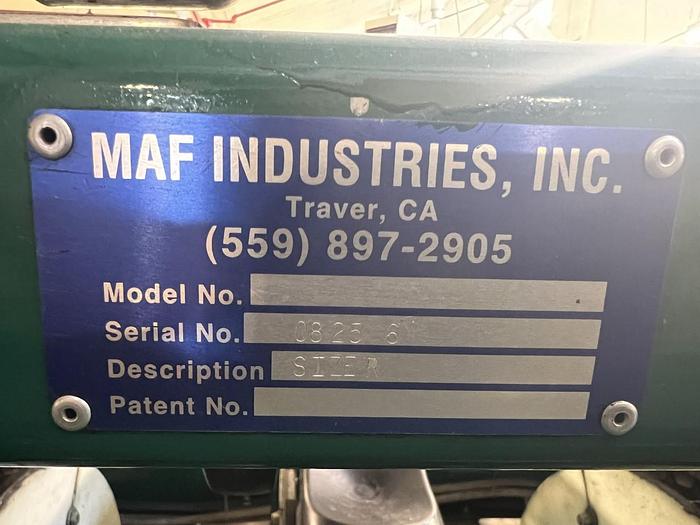

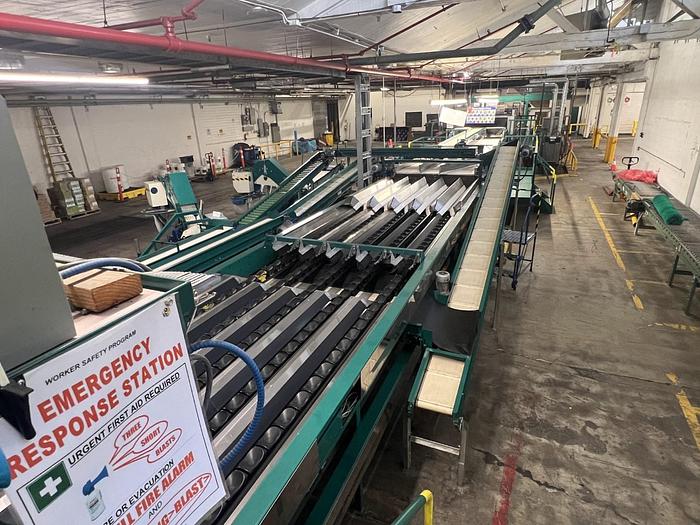

One-Way 6" Pitch

Five-lane with 26+1 outlets

OA length of sizer: 112'9"

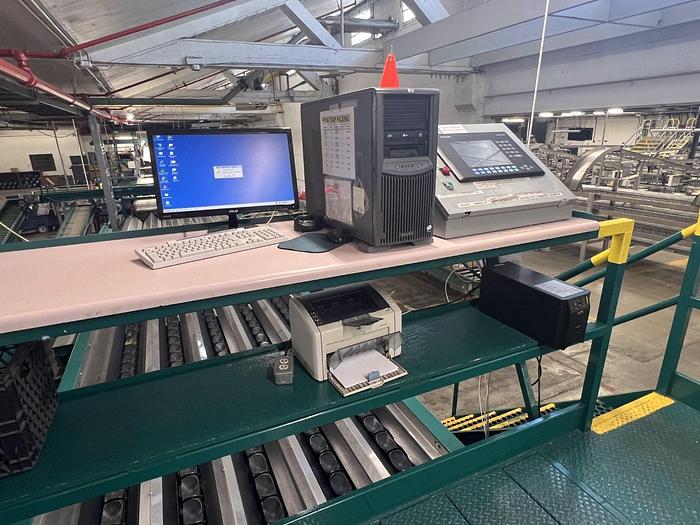

PC Computer, account software & laser printer

WITHOUT OPTICS

Includes:

• AC inverter for speed control
• Missed singulation outlet for returns
• Pre-singulation belts, chain oiler, and parts cleaning system
• Chute deliveries

Important Note: not for product less than 1-5/8" (42mm) or longer than 5-5/16" (135mm).

20'3"L Belt Conveyor

Loop (wave) belt: 12"W

Powered by a ½ hp CSD motor

Two side extension(s)

3'9"L Belt Conveyor

Two-ply rubber-molded vinyl belt: 12"W

Powered by a ½ hp CSD motor

10'6"L Runout Belt Conveyor

Antistatic belt: 18"W

Powered by a ½ hp CSD motor

39'6"L Belt Conveyor

Two-ply rubber-molded vinyl belt: 18"W

Powered by a ¾ hp CSD motor

Includes one straight-fixed diverter

12'6"L Runout Belt Conveyor

Antistatic belt: 18"W

Powered by a ½ hp CSD motor

31'6"L Belt Conveyor

Two-ply rubber-molded vinyl belt: 18"W

Powered by a ½ hp CSD motor

Includes one straight-fixed diverter

14'L Runout Belt Conveyor

Antistatic belt: 18"W

Powered by a ½ hp CSD motor

26'9"L Belt Conveyor

Two-ply rubber-molded vinyl belt: 18"W

Powered by a ½ hp CSD motor

Includes one straight-fixed diverter

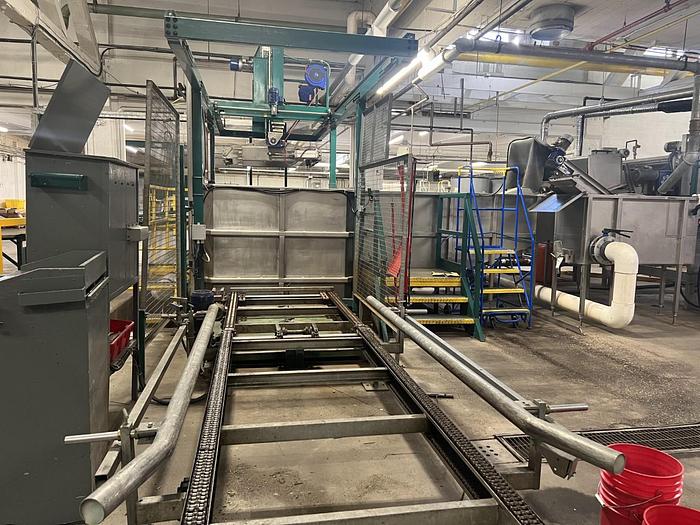

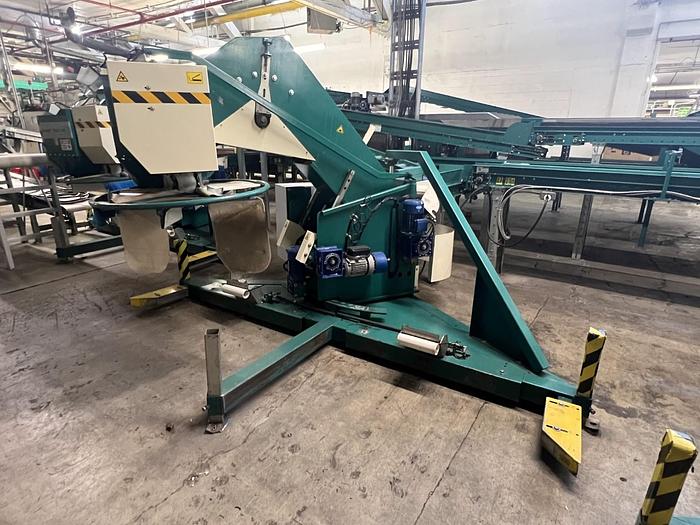

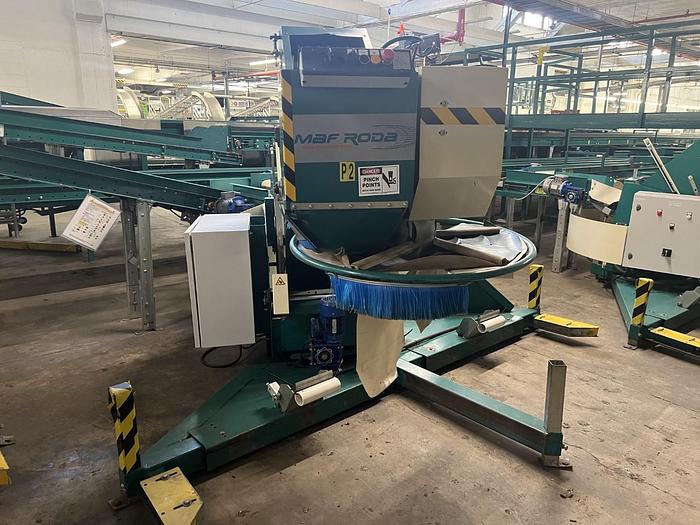

MAF Dry Bin Filler

Double-bin style

Rotary head with goose neck style

Capacity up to 10 bins/hr

9'6"L Runout Belt Conveyor

Antistatic belt: 18"W

Powered by a ½ hp CSD motor

7'L Belt Conveyor

Loop (wave) belt: 18"W

Powered by a ½ hp CSD motor

Two side extension(s)

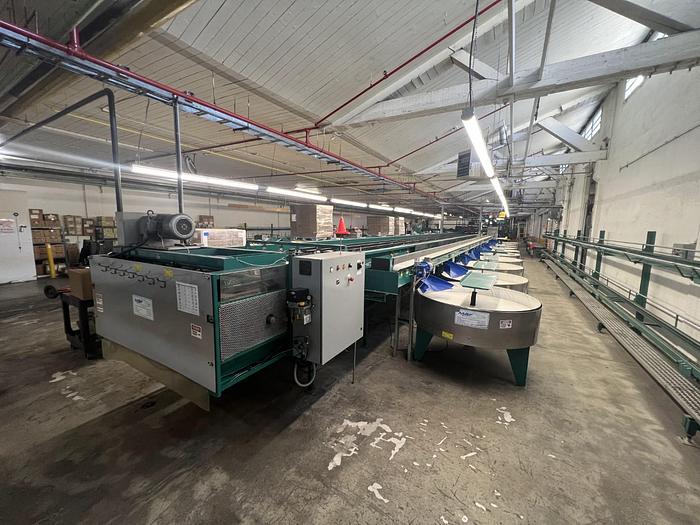

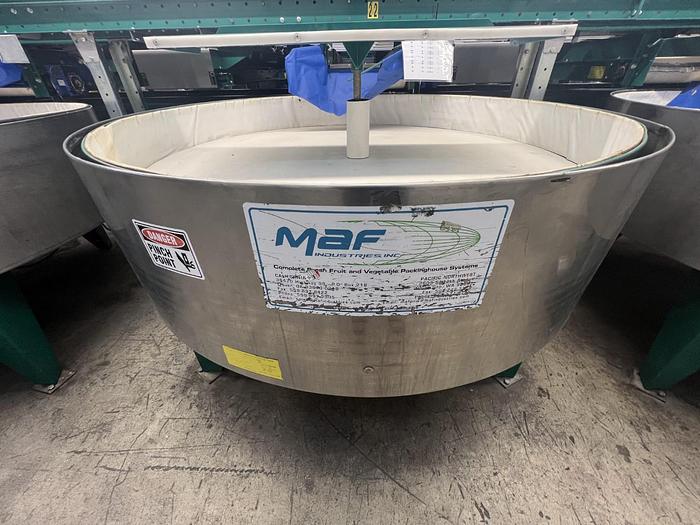

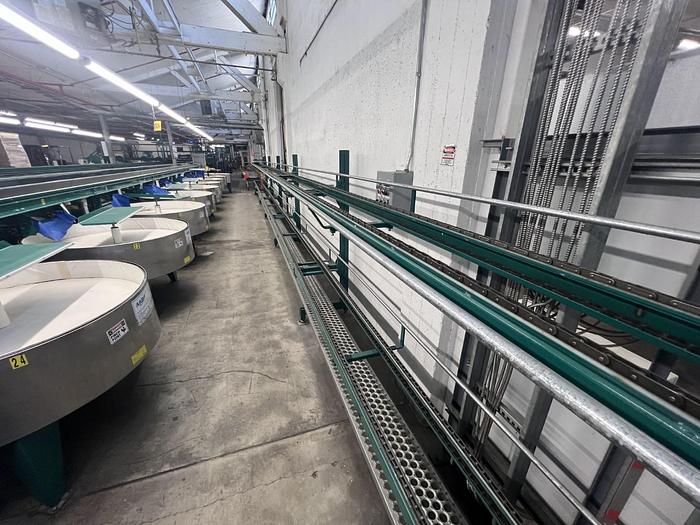

Rotary Pack Table

Table: 5’ diameter

Powered by a 1/3 hp CSD, 110V, single phase electric motor drive.

Includes supple shelf.

23'6"L Return Belt Conveyor

Two-ply rubber-molded vinyl belts: 36"W & 18"W

Powered by a ¾ hp motor, and the other by a ½ hp motor, both with AC inverter

Includes three powered belt diverters (3 hp, 480V)

4'9"L Bagger Feed Belt Set

Width: 8"

Powered by a ¾ hp CSD motor

Semi-Automatic Bagger, Model PNW

For 3-, 4-, 5-, 8-, 10- pound poly bags

Sensitive programmable weight control

Fan for easy bag opening and filling

Operator control panel and large visual display

Dribble feed and adjustable feed rate

21'6"L Belt Conveyor

Two-ply rubber-molded vinyl belt: 18"W

Powered by a ½ hp CSD motor

6'9"L Belt Conveyor

Two-ply grip-top belt: 18"W

Powered by a ½ hp CSD motor

13'L Belt Conveyor

Two-ply rubber-molded vinyl belt: 18"W

Powered by a ½  hp CSD motor

Includes an exit chute.

15'L Gravity Skate-Wheel Conveyor

Width: 24", with side guides

13'L Belt Conveyor

Two-ply grip-top belt: 24"W

Powered by a ½ hp CSD motor

8'9"L Runout Belt Conveyor

Antistatic belt: 18"W

Powered by a ½ hp CSD motor

9'3"L Runout Belt Conveyor

Antistatic belt: 18"W

Powered by a ½ hp CSD motor

59’L Belt Conveyor

Two-ply rubber-molded vinyl belt: 9”W

Powered by a ½ hp CSD motor

Includes an exit chute

6'L Belt Conveyor

Loop (wave) belt: 12"W

Powered by a ½ hp CSD motor

Two side extension(s)

99'L Belt Conveyor

Two-ply rubber-molded vinyl belt: 12"W

Powered by a 1 hp CSD motor

6'9"L Belt Conveyor

Loop (wave) belt: 12”W

Powered by a ½ hp CSD motor

Two side extension(s)

Rotary Pack Table

Table: 3' diameter

Powered by a 1/3 hp CSD 110V, single phase electric motor drive

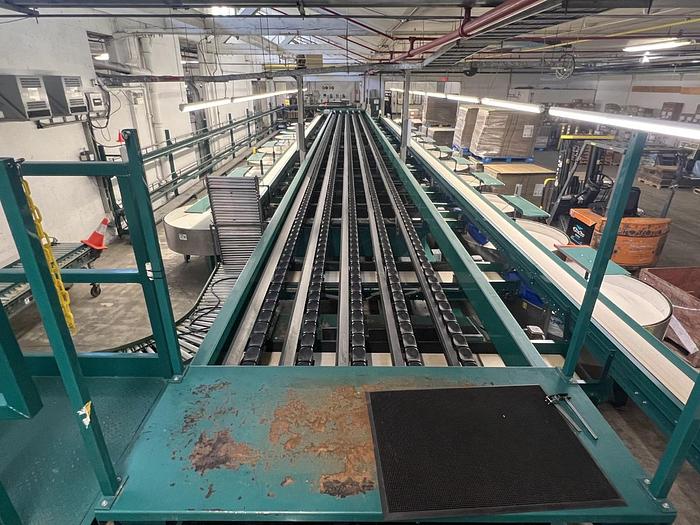

70'6"L Two-Chain Carton Conveyor

Designed for PACKED Cartons

Powered by a 3 hp CSD motor

Includes a #2050 chain and one fixed-side guide

Belt-Driven Live Roll 90° Curve

Includes integration inside MAF shop

1.9" rolls for conveyors with 3" roll centers

B.F. width: 25”

Powered by a ½ hp CSD motor

63'9"L Two-Chain Carton Conveyor

Designed for PACKED Cartons

Powered by a 3 hp CSD motor

Includes #2050 chain and one fixed-side guide

10'L Belt Conveyor

Two-ply grip-top belt: 24"W

Powered by a ½ hp CSD motor

18'L Belt-Driven Live Roll Conveyor

Includes integration inside MAF shop

Roll centers: 1-1/2"

25-inches between frame, with 2-ply black rubber belt

Powered by a 1 hp CSD motor

Includes traffic cop and photo-eye.

21'L Belt Conveyor

Two-ply grip-top belt: 24"W

Powered by a ½ hp CSD motor

25'L Belt Conveyor

Two-ply grip-top belt: 24"W

Powered by a ½ hp CSD motor

Barcode Reader Unit

Includes barcode reader, air pusher with gate, and holder for barcode reader.

Customer responsible for wiring to their PLC unit.

13'L Belt Conveyor

Two-ply grip-top belt: 24"W

Powered by a ½ hp CSD motor

70'L Two-Chain Carton Conveyor

Designed for EMPTY Cartons

Powered by a 1-1/2 hp CSD motor

Includes #2050 chain and 2 fixed-side guides, frame, mini roller, photo-eye and pusher

28'6"L Two-Chain Carton Conveyor

Designed for EMPTY Cartons

Powered by a 1-1/2 hp CSD motor

#2050 chain with 2 fixed-side guides

Includes frame, mini roller, photo-eye, pusher and controls

74'9"L Two-Chain Carton Conveyor

Designed for EMPTY Cartons

Powered by a 1-1/2 hp CSD motor

Includes #2050 chain with 2 fixed-side guides and one photo-eye

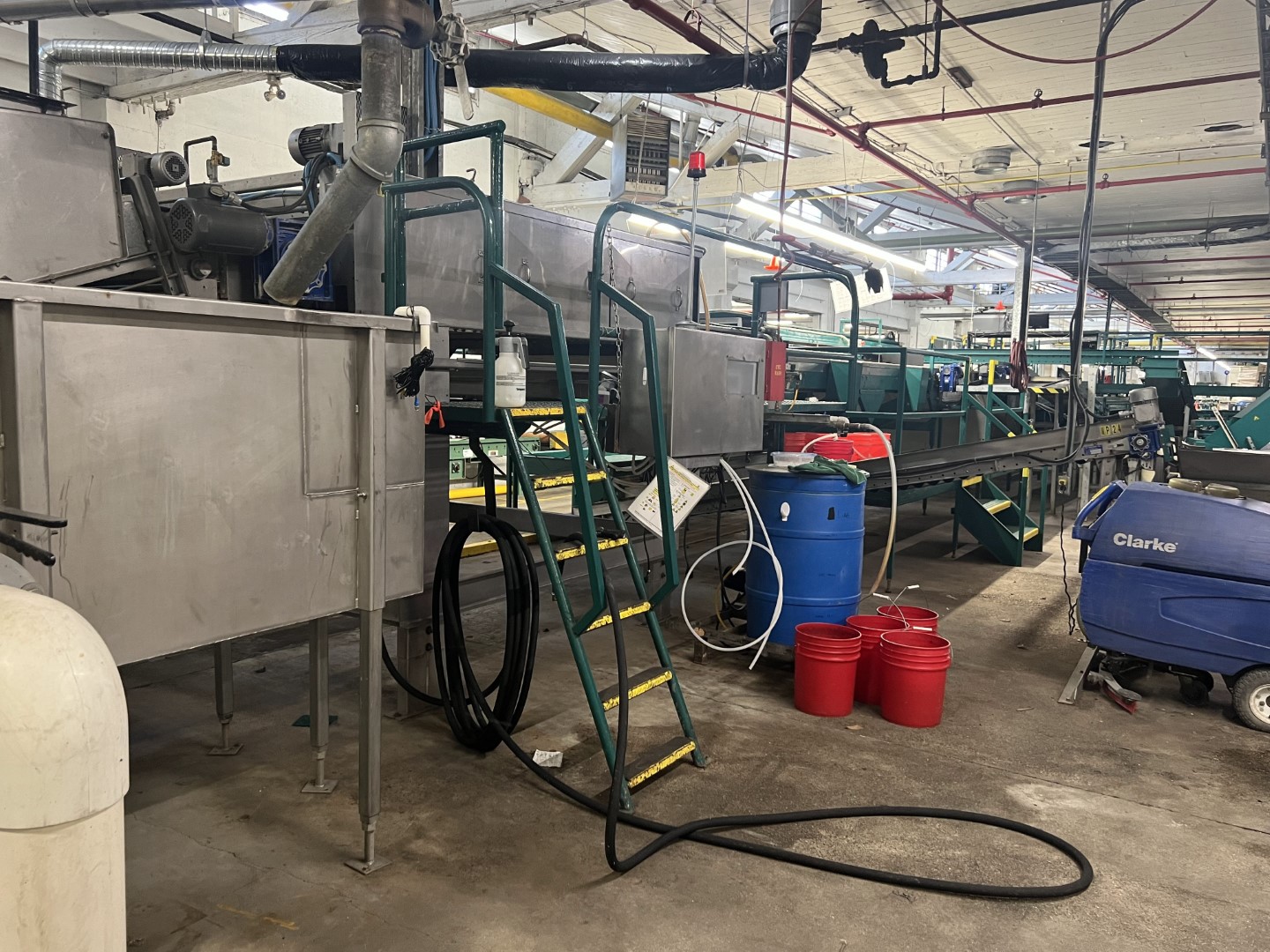

Catwalks, Stairs

Platform: 96 sq.ft

Four stairs with hand rails

Hand rails: 90'L

Leg supports: 24"H

Supports: 24 count
