CRANE Deming 7171 Centrifugal Pump
Sold
CRANE Deming 7171 Centrifugal Pump
Description

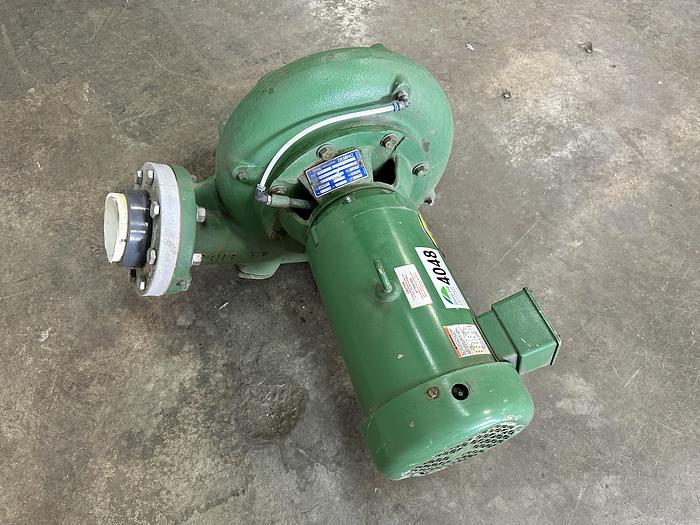

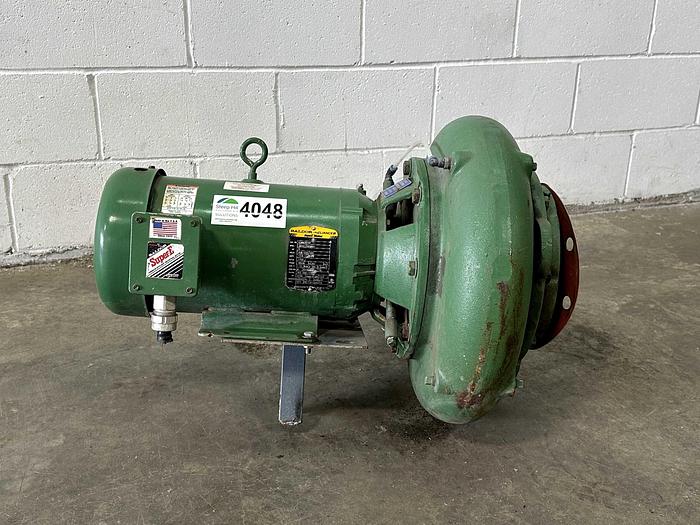

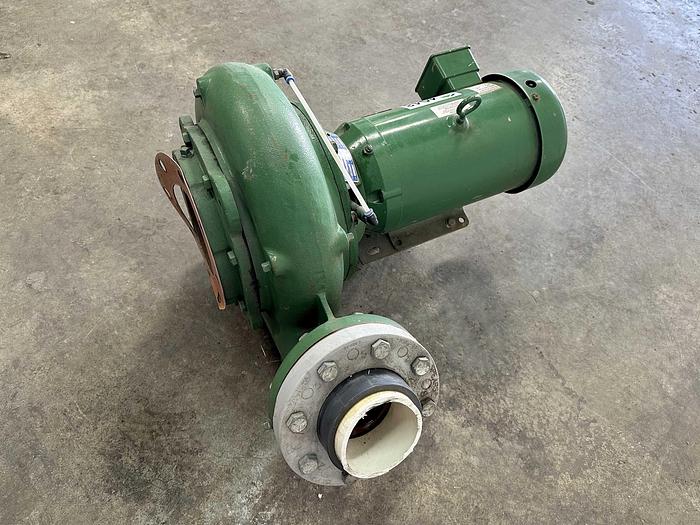

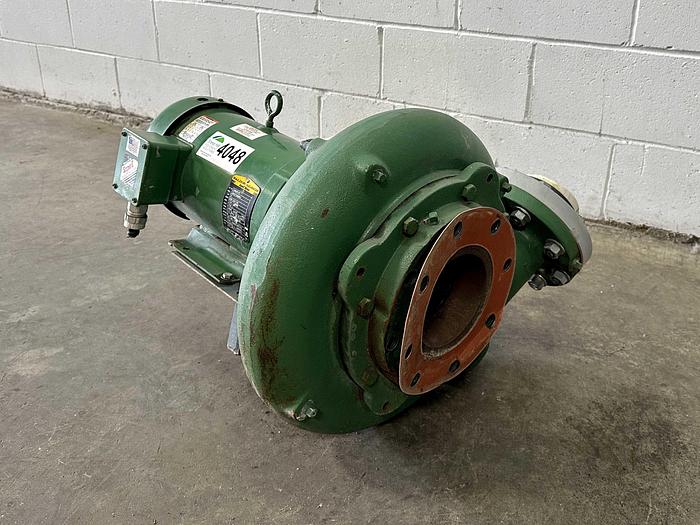

The Deming dry pit solids handling centrifugal pump is a horizontal motor-mount with double mechanical seal.

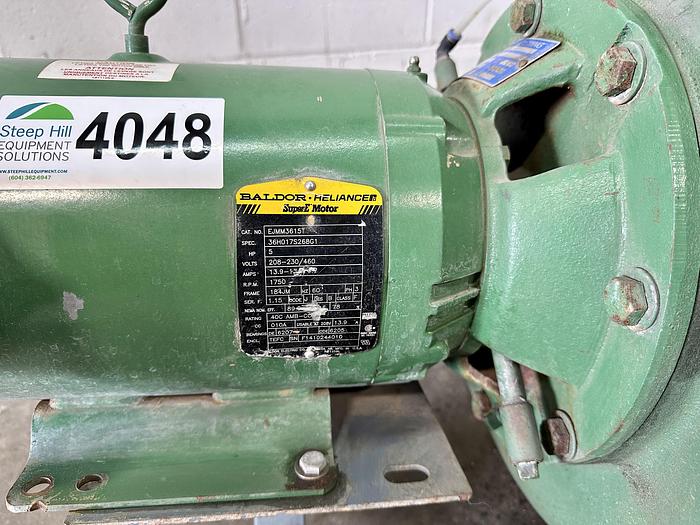

Powered by a Baldor-Reliance SuperE 5 hp electric motor.
Size: 5 x 4 x 9.5
Rotation: RH

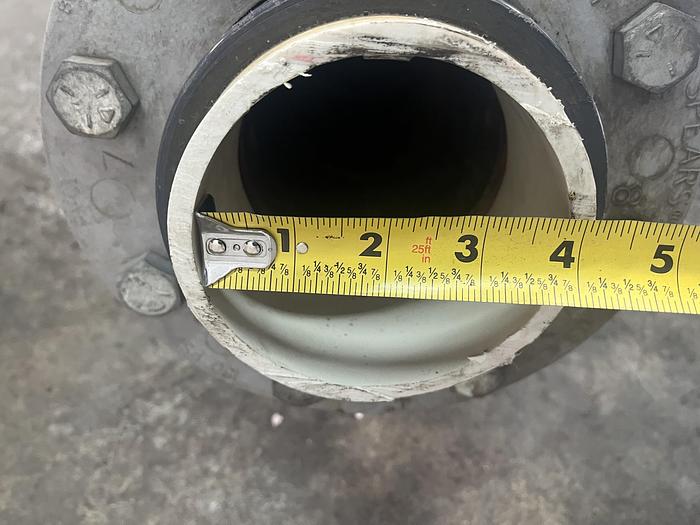

Suction: 4.75" diameter

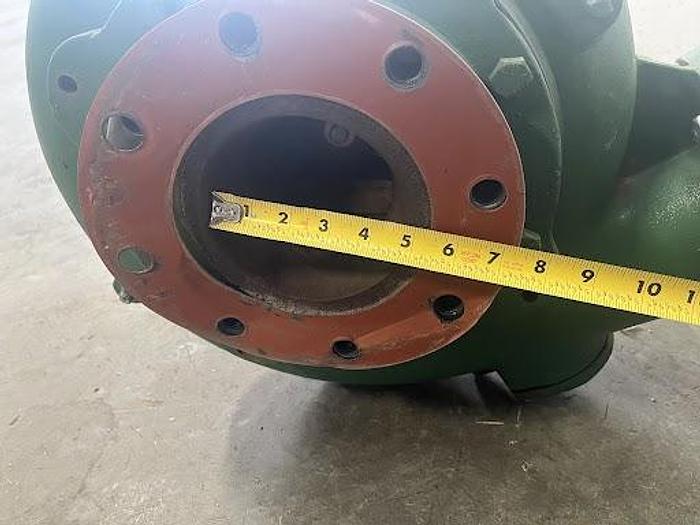

Discharge: 3.75" diameter
Impeller: 6.8125" diameter
Specifications

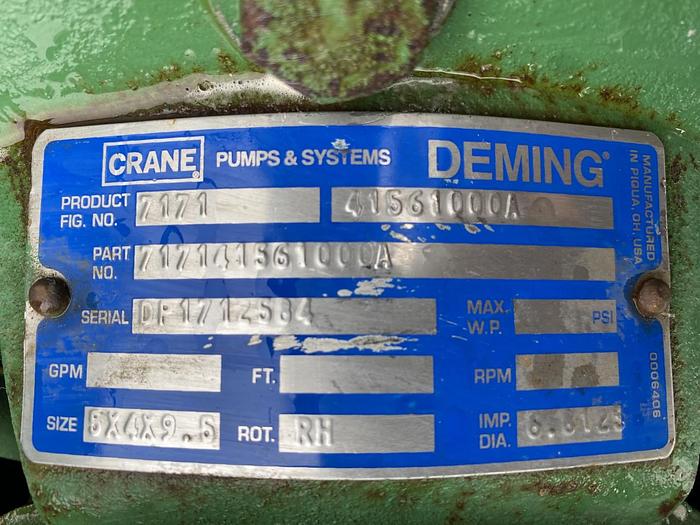

| Manufacturer | CRANE Pumps & Systems |
| Model | 7171 |
| Condition | New |
| Serial Number | DP1712584 |
| Stock Number | 4048 |
| Location Code | AA7-2 |
| Pump Inlet Size (in) | 4.75 |
| Pump Outlet Size (in) | 3.75 |
| HP | 5 |
| RPM | 1750 |
| Voltage | 208-230/460 |
| Amperage | 13.9-13.4/6.7 |
| Phase | 3 |
| Dimensions (l x w x h) | 26" x 25.5" x 18.5" |
| Impeller | 6.8125" diameter |
