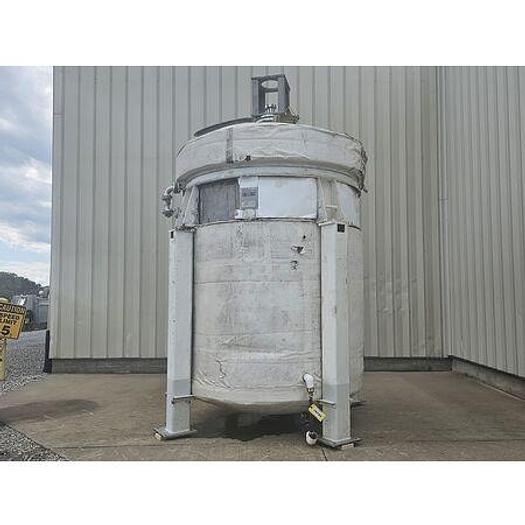

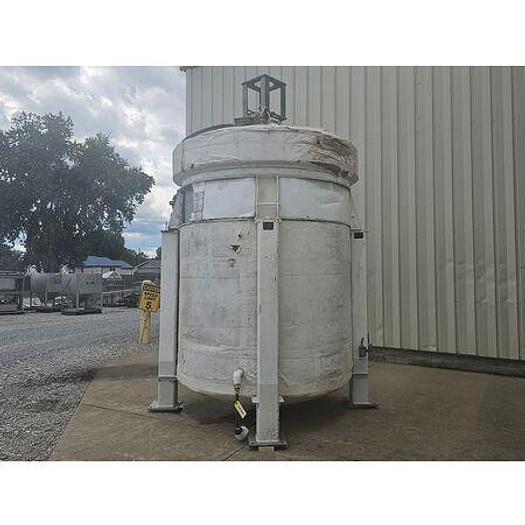

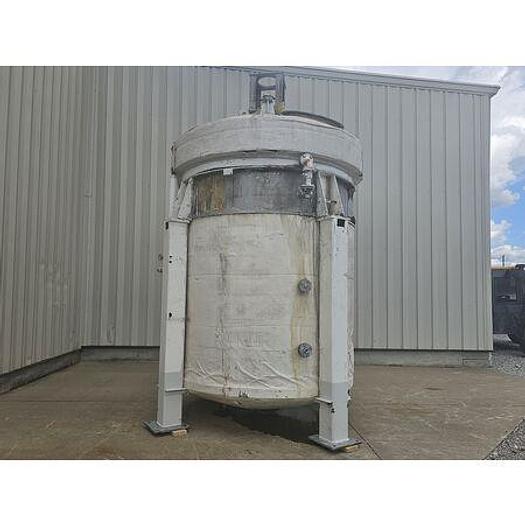

Dimple Jacketed Reactor Tank with Agitation

Dimple Jacketed Reactor Tank with Agitation

• All wetted surfaces are 316 stainless steel, jacket material is 304 stainless steel

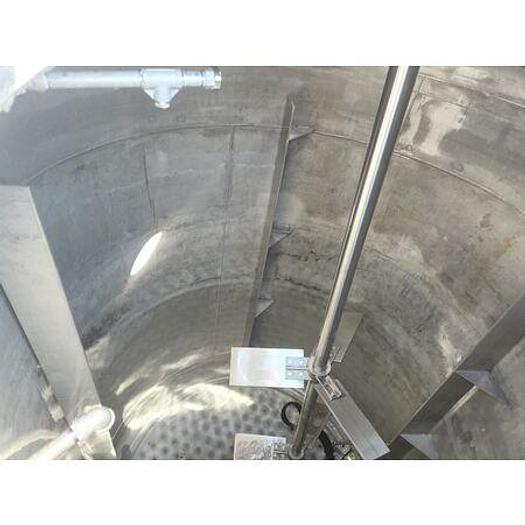

Internals of the tank measure 78" diameter, 102" straight side, top and bottom dished heads

• 10"Ø flanged bottom drain (flush with base)
• Tank shell is rated for 50PSI @ 450°F
• Dimple jacketed on bottom head and a 5' long band on lower straight wall

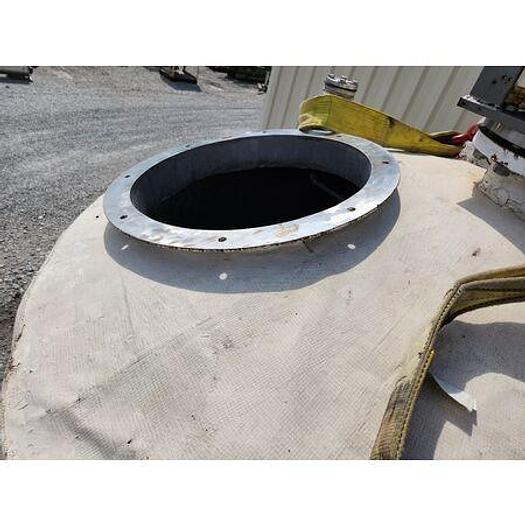

• 23"Ø flanged access on top head and 8"Ø flanged port

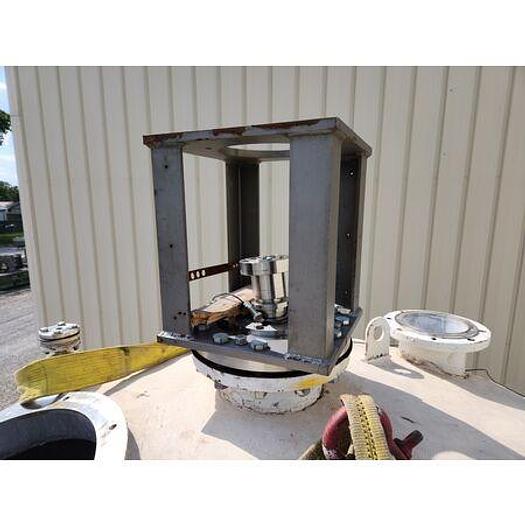

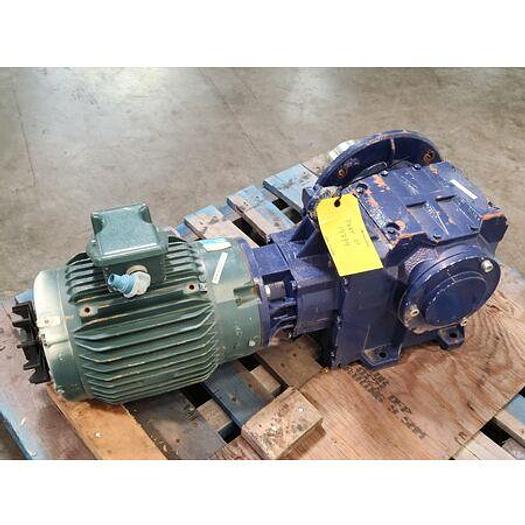

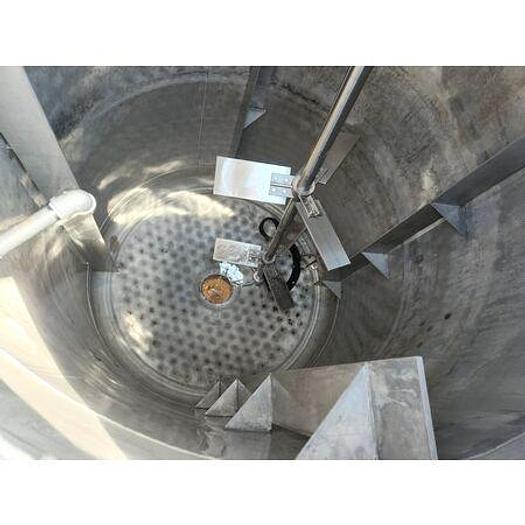

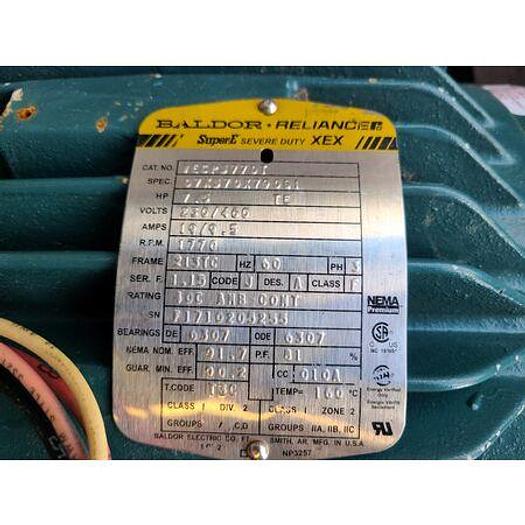

7.5HP vertical mixer/agitator, top/center positioned, twin 3-blade impellers

• Impeller speed = 98 RPM.
• Power Required: 230/460V, 60Hz, 3ph AC

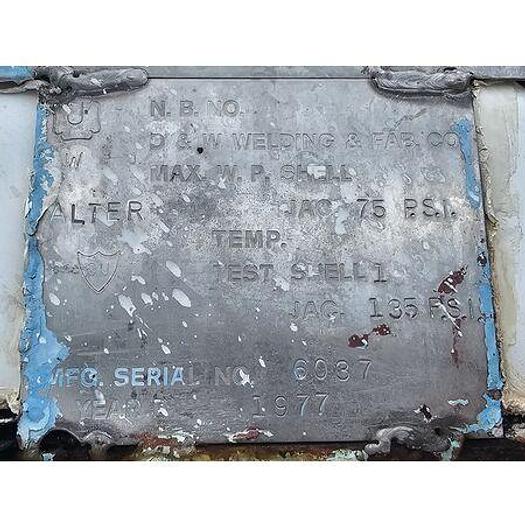

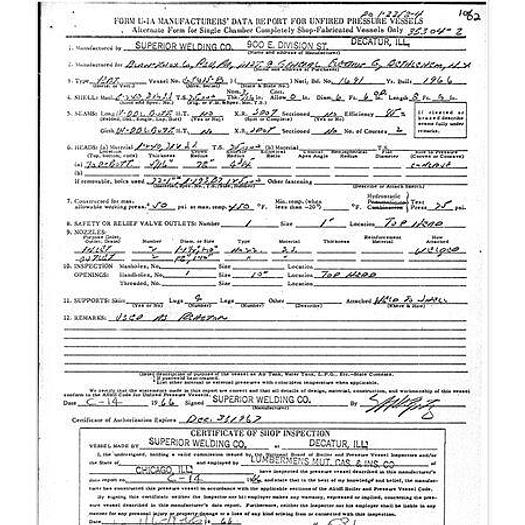

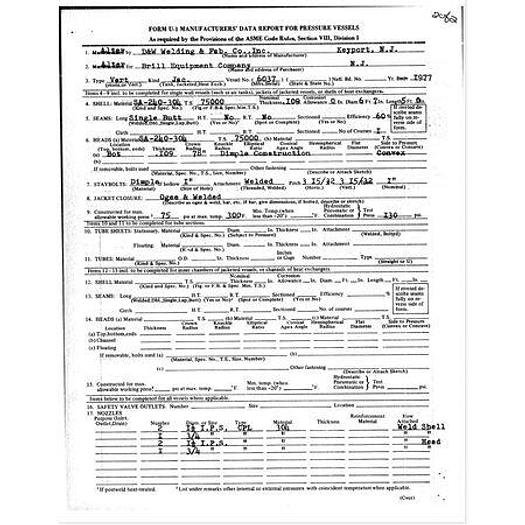

• Current ASME U-1 Data Report on file

Weight of tank (w/o mixer drive) = 8,500 LBS.

Weight of Mixer drive = 534 LBS.
