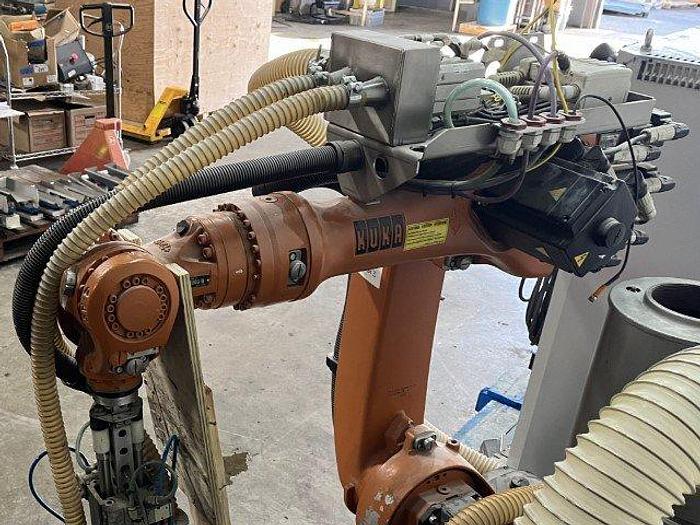

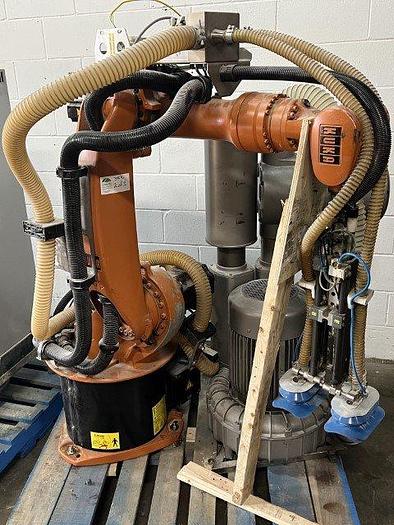

KUKA KR 16-2 S Robot Arm

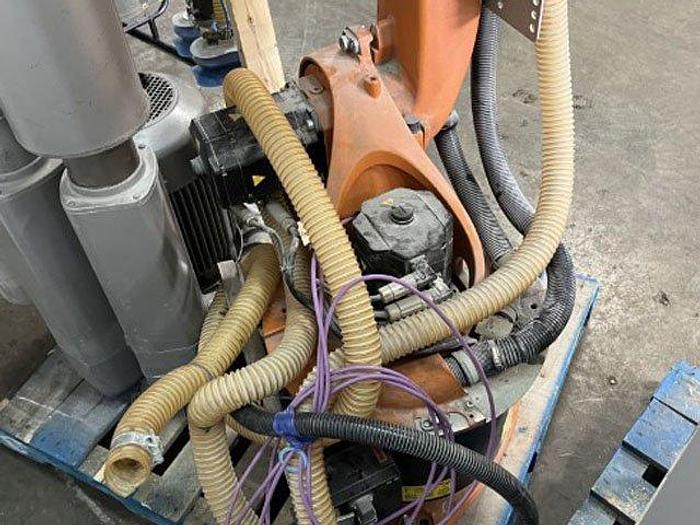

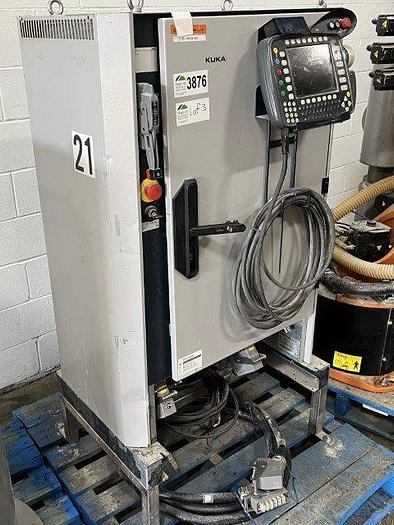

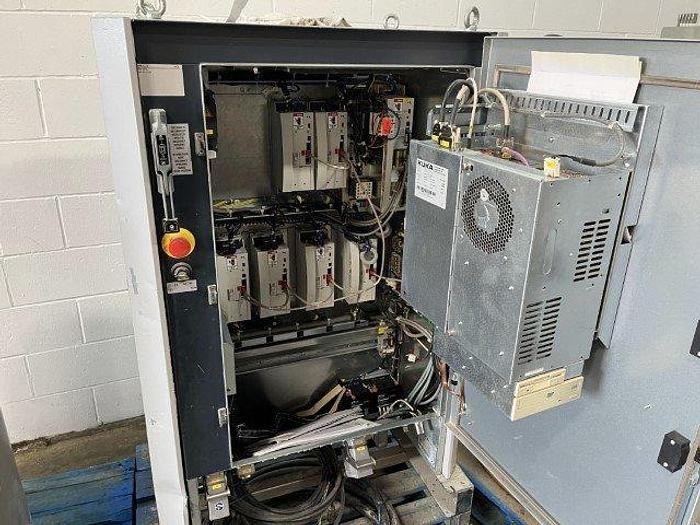

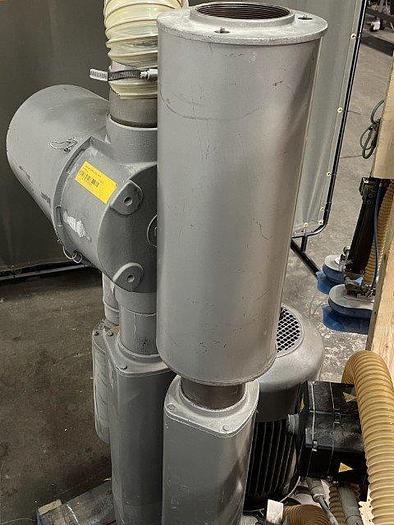

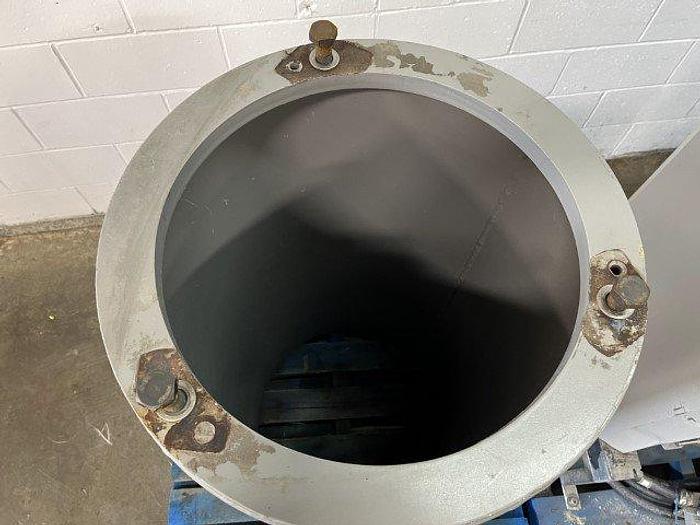

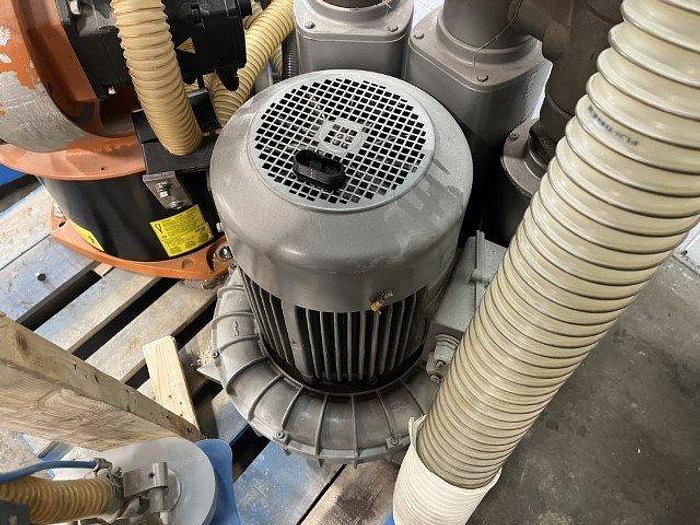

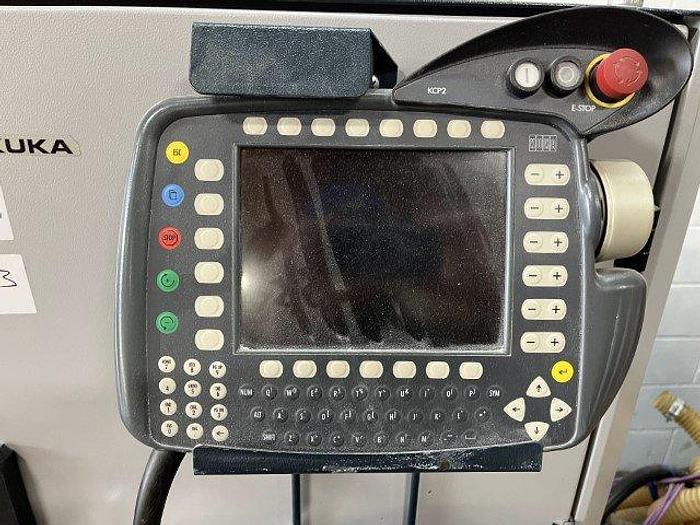

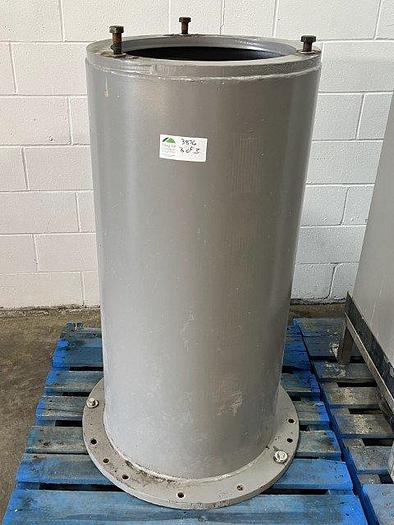

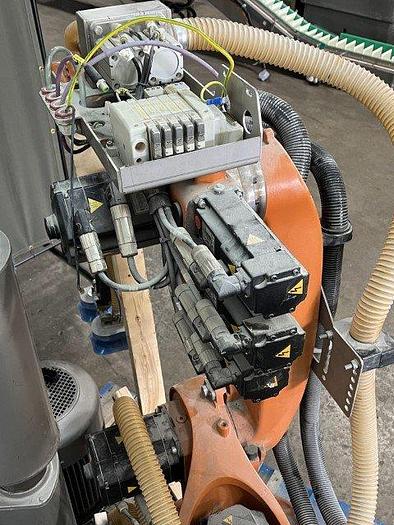

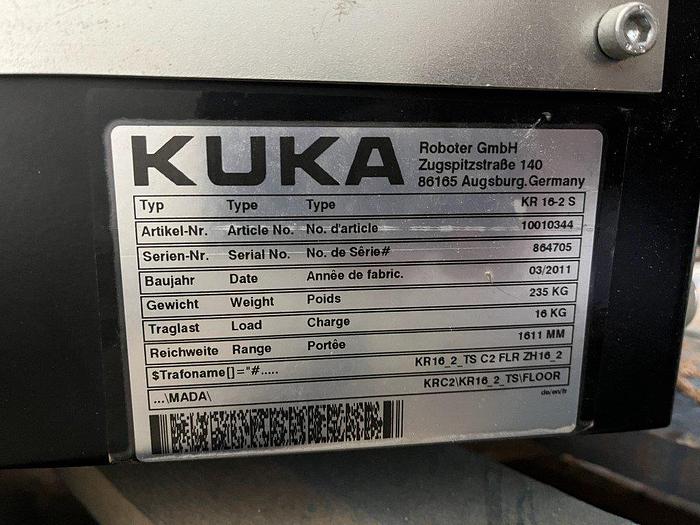

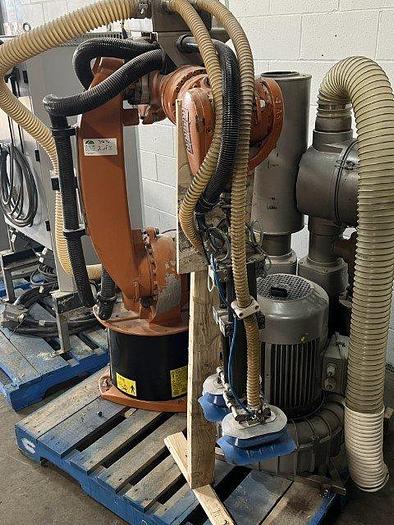

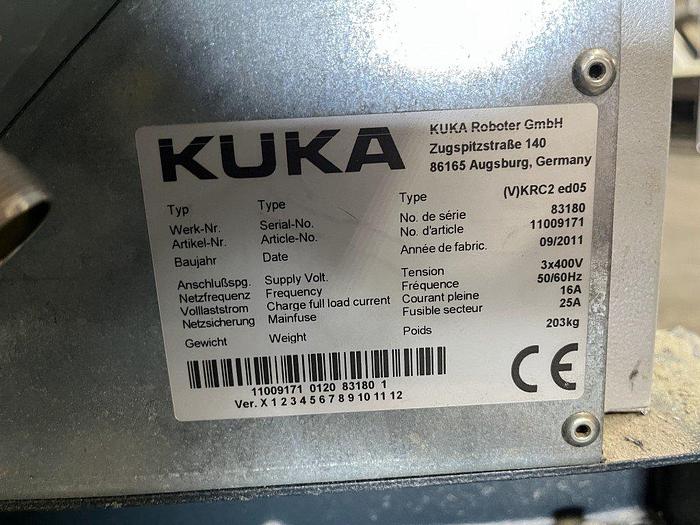

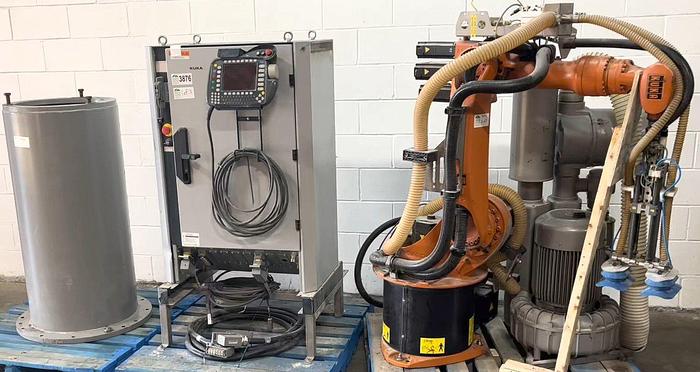

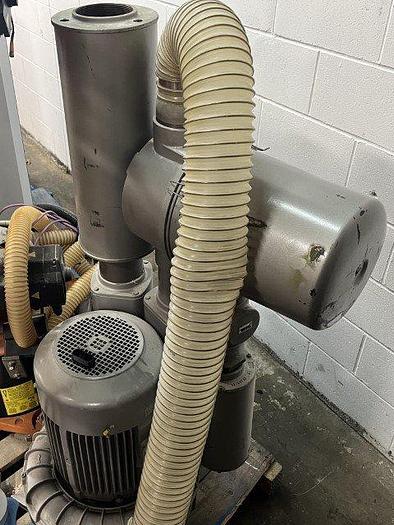

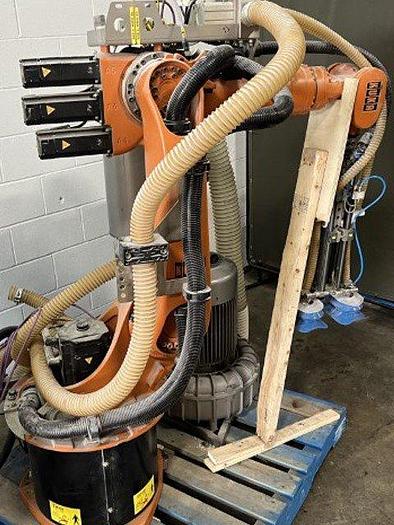

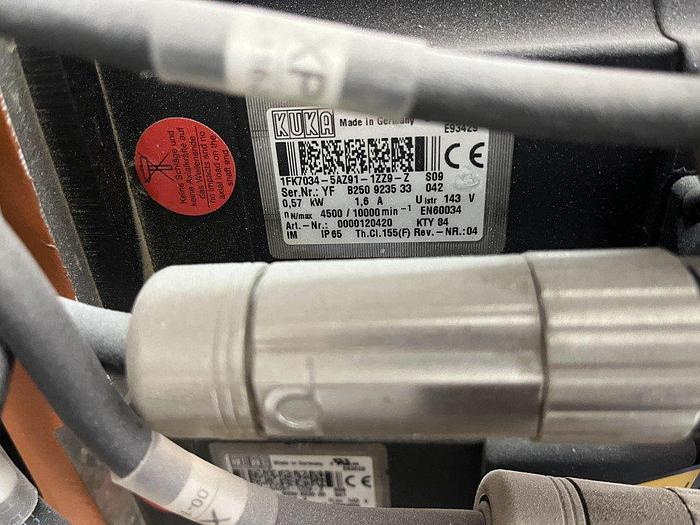

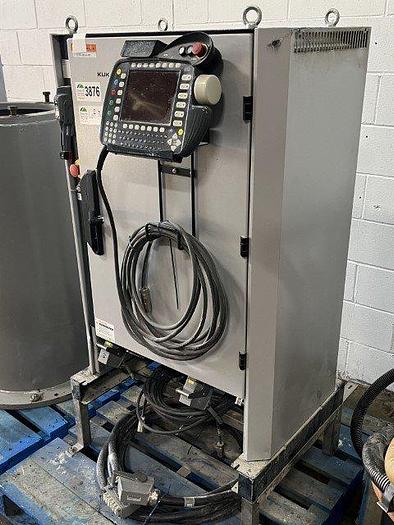

The KUKA KR 16-2 S is a 6-axis pick’n’place robot arm. It offers a maximum 16 kg payload and 1611 mm horizontal reach. The Robot is installed on a floor-mounted column, but it can be installed on other platforms as required. Range of motion: Axis 1: ±185° Axis 2: +35° | -155° Axis 3: +154° | -130° Axis 4: ±350° Axis 5: ±130° Axis 6: ±350° Robot motion speed, degrees per second Axis 1: 156° Axis 2: 156° Axis 3: 156° Axis 4: 330° Axis 5: 330° Axis 6: 650° Robot: 45″L x 33″W x 63″H KUKA Servo Motor Model: 1FK7037 Becker Single Stage Vacuum Pump with Regen Blower Model: SV Series (SV 5.1050/1) Pressure: 240/210 mbar Vacuum: 265/250 mbar Inlet capacity: 1050/1250 m 3 /hr Power: 11/13.2 kW | 50/60 Hz Pump: 29″L x 25″W x 53″H KUKA Control Panel Model: KRC 2 Enclosure: 32″L x 21″W x 60″H KUKA Column Mount Dimensions: 48″H x 22″ diameter
