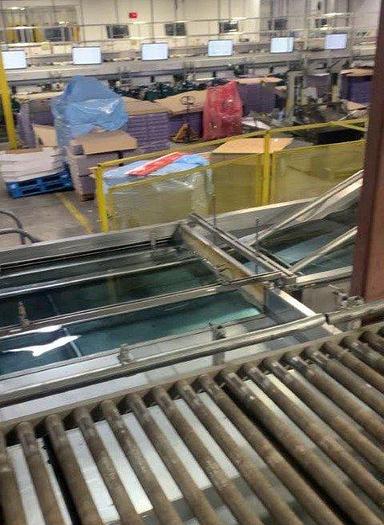

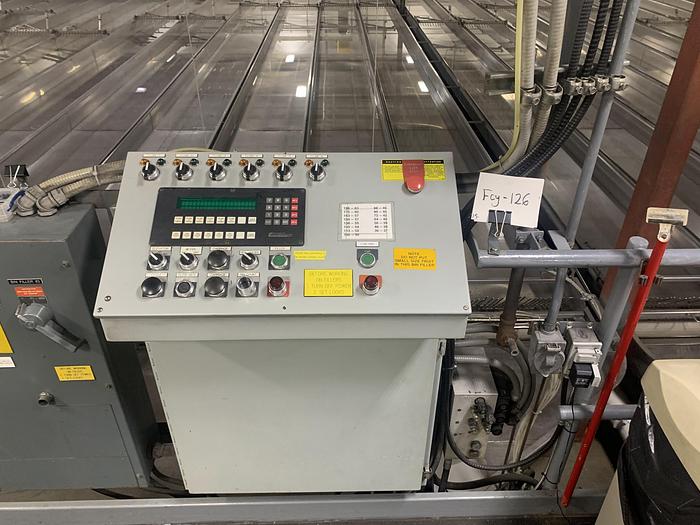

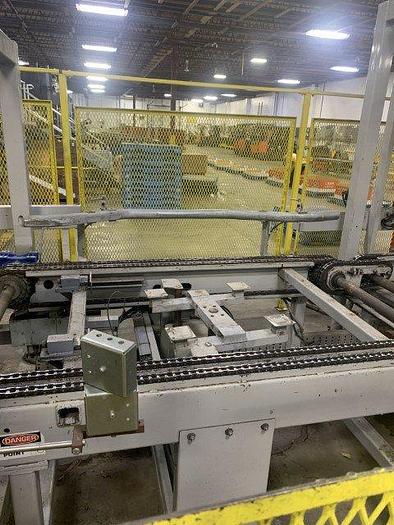

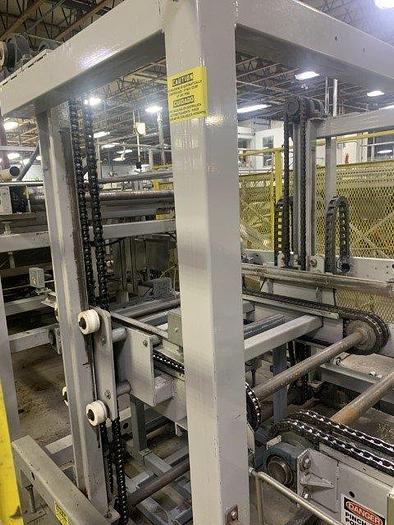

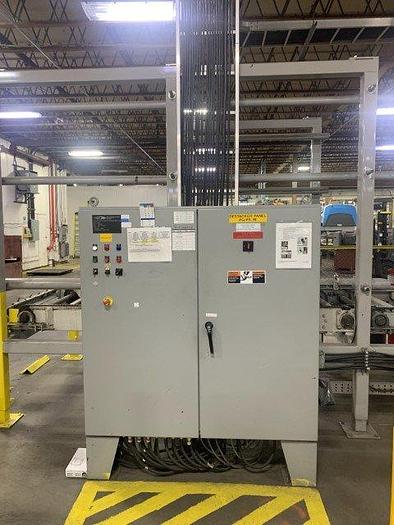

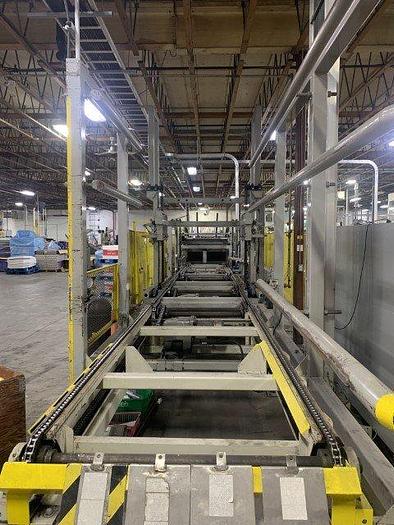

Apple Processing Line

It dumps, washes, sorts and sizes apples and returns them to the bins to be placed back into storage until needed. Rate: 400 bins per day, 50 bins per hour. Can be used for other produce. Includes the following: Destacker – #1 chain conveyor Destacker – #2 chain conveyor Destacker – #3 chain conveyor (dog section) Destacker – #4 chain conveyor (bin turner section) Destacker – #5 lift chain conveyor (scale section) Bin dog lift drive Scale weigh lift drive Dumper lead in rollers Dumper Dumper out feed rollers Empty bin chain conveyor (after dumper) Intermediate roller bin transfer Empty bin feed rollers (section #1) Empty bin feed roller Empty bin feed rollers (section #3) Intermediate roller bin transfer Broken bin reject ramp roller Empty bin chain conveyor (after roller sections) Empty bin infeed rollers (section #1) Empty bin infeed rollers (section #2) Empty bin chain conveyor to bin fillers Rot/Leaf remover roll conveyor Rot/Leaf remover conveyor (18″W cleated plastic conveyor) Rot/Leaf remover cross belt (12″W pvc belt) Rot pipe dewatering conveyor Sorting table Sorting table leaf eliminator Horseshoe flume roll elevator Horseshoe leaf eliminator (18″W cleated plastic conveyor) Leaf trash conveyor (12″W pvc belt) Sizer brush bed drive Brush fan (South) Brush fan (North) Brush bed apple pusher Singulator over-flow let down brush Blue pre-singulator belts and drive Blue pre-singulator belts and drive Pre-singulator inlet brush V-Thane belt drive system (rotates singulator wheels before color sorter) V-Thane belt drive system (rotates singulator wheels under color sorter) Singulator overflow conveyor #1 (12″W pvc belt) Singulator overflow conveyor #2 (12″W pvc belt) Singulator overflow conveyor #3 (12″W pillow belt) Cull conveyor under sizer 18″W Sizer let down brush drive and jackshaft (Drops 1-6) Sizer let down brush drive and jackshaft (Drops 7-12) Sizer let down brush drive and jackshaft (Drops 13-18) Sizer let down brush drive and jackshaft (Drops 19-23) Sizer let down brush drive and jackshaft (Drops 24-28) Weigh cradle & singulator wheel drive Cull conveyor #1 under sorting table (16″W pvc belt) Cull conveyor #2 (16″W pvc belt) Cull conveyor elevator #3 (16″W pillow belt) Cull conveyor elevator #4 (16″W pillow belt) Hydro Bin Filler Mfg Date 1997 Filler Pump #1 Filler Pump #2 Vacuum pump motor Leadout Rollers Flume Pump Stationary & traveling gates Hydro Bin Filler Mfg Date 2004 Filler Pump #1 Filler Pump #2 Vacuum pump motor Leadout Rollers Flume Pump Flume Pump Flume Pump Stationary & traveling gates Hydro Bin Filler Mfg Date 1996 Filler Pump #1 Filler Pump #2 Vacuum pump motor Leadout Rollers Flume Pump Flume Pump Stationary & traveling gates Hydro Bin Filler Mfg Date 1996 Filler Pump #1 Filler Pump #2 Vacuum pump motor Leadout Rollers Flume Pump Flume Pump Stationary & traveling gates Hydro Bin Filler Mfg Date 2015 Filler Pump #1 Filler Pump #2 Vacuum pump motor Leadout Rollers Flume pump Bin Filler #5 Flume pump Bin Filler #5 Flume pump Bin Filler #5 Stationary & traveling gates Pit trash conveyor All padding checked on belt transfers, sizer let down brushes Water Pumps (clean pump packing glands, add packing if required) Defect Sorter Background Mat Main hydraulic pump filter changed, unit serviced Lights over sorting table Clean all bin filler probes Clean-out gate seals checked
