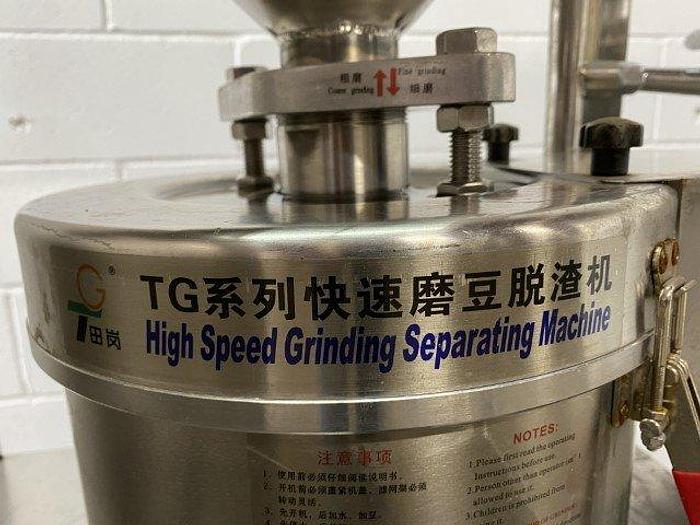

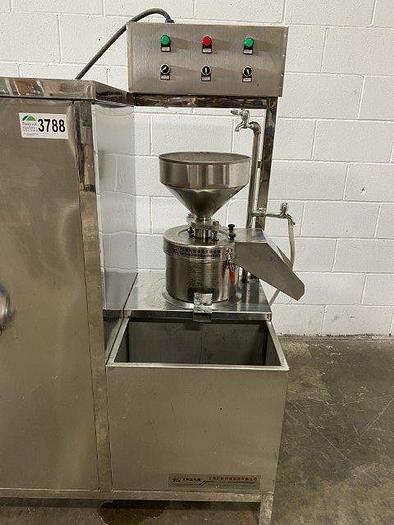

TG-100 High Speed Grinder-Separator

TG-100 High Speed Grinder-Separator

Description

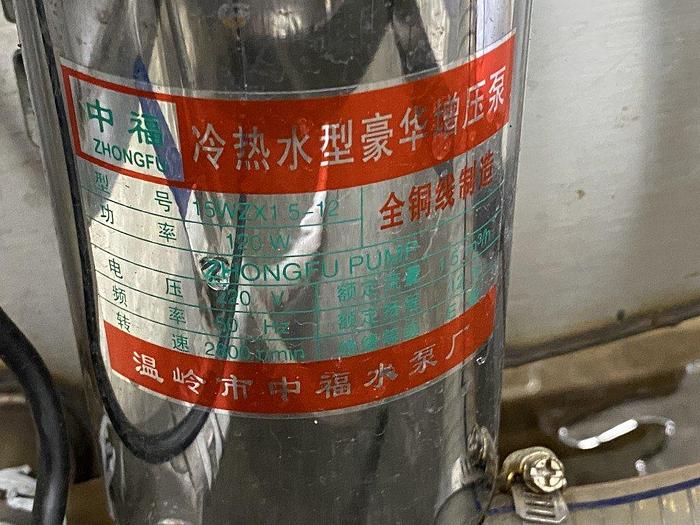

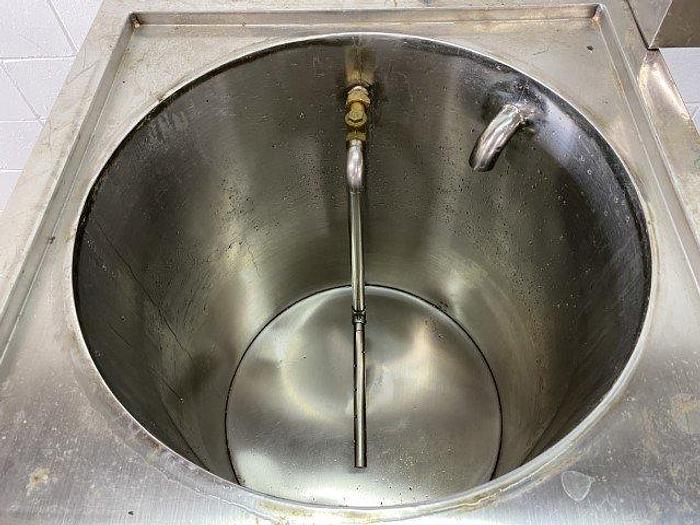

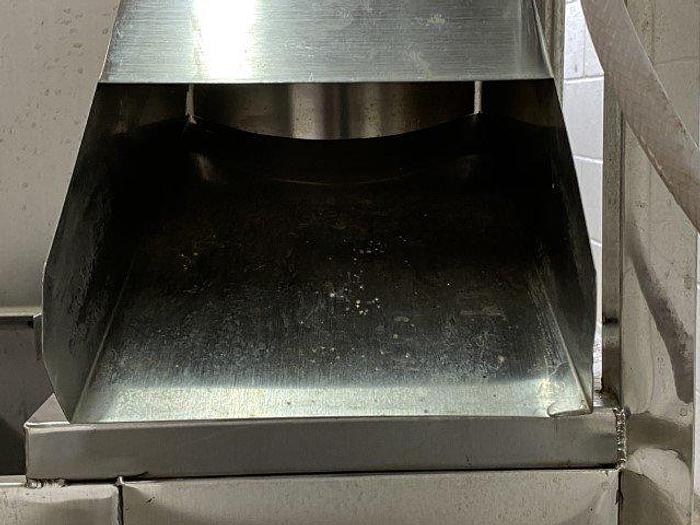

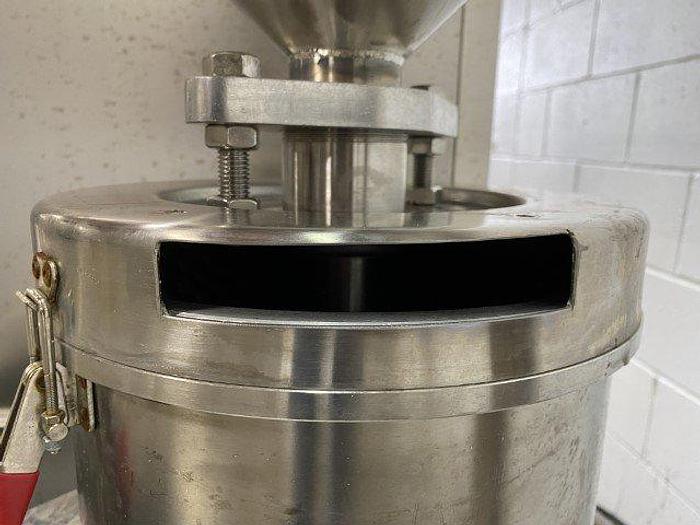

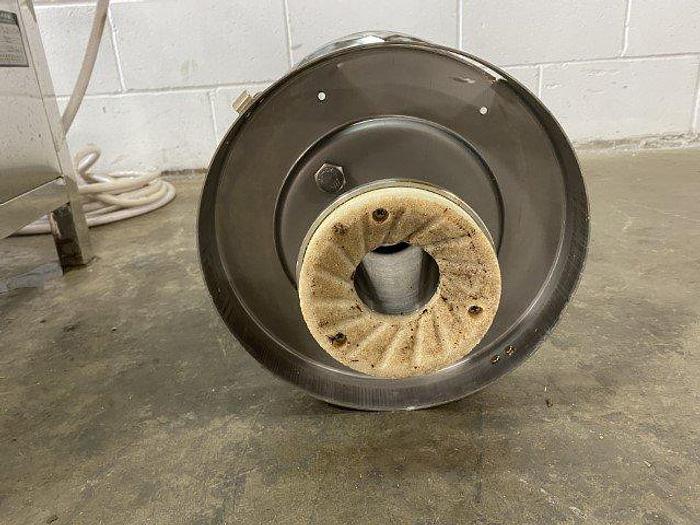

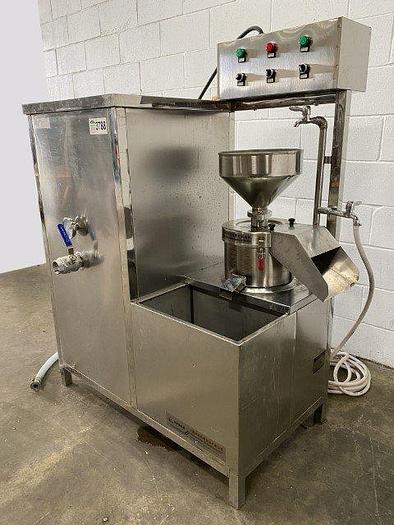

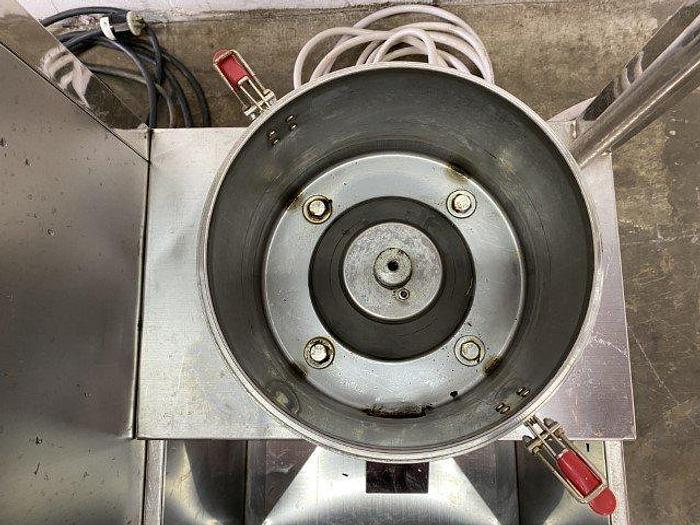

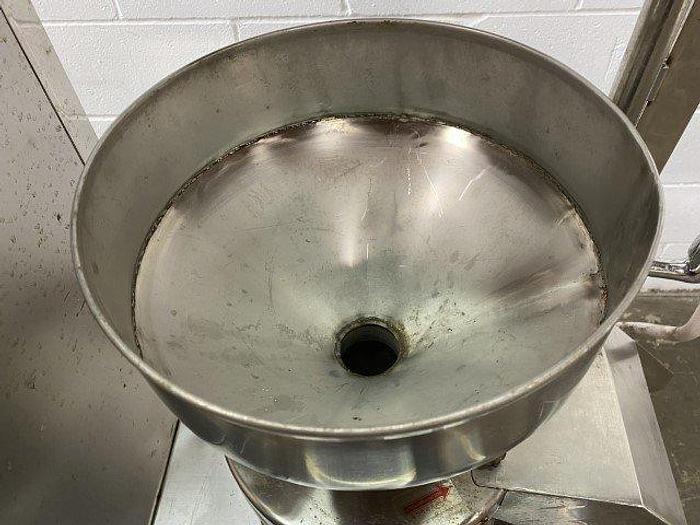

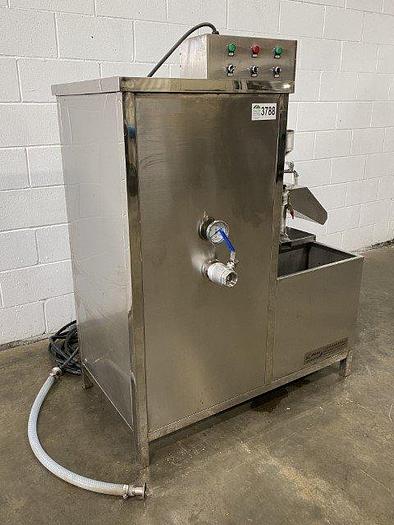

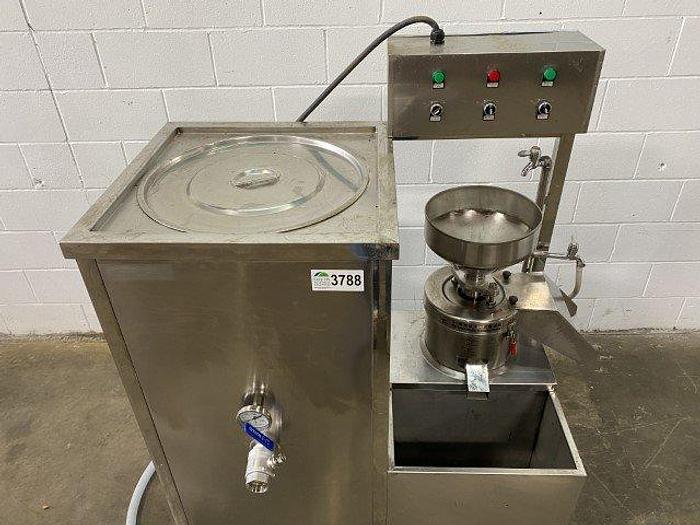

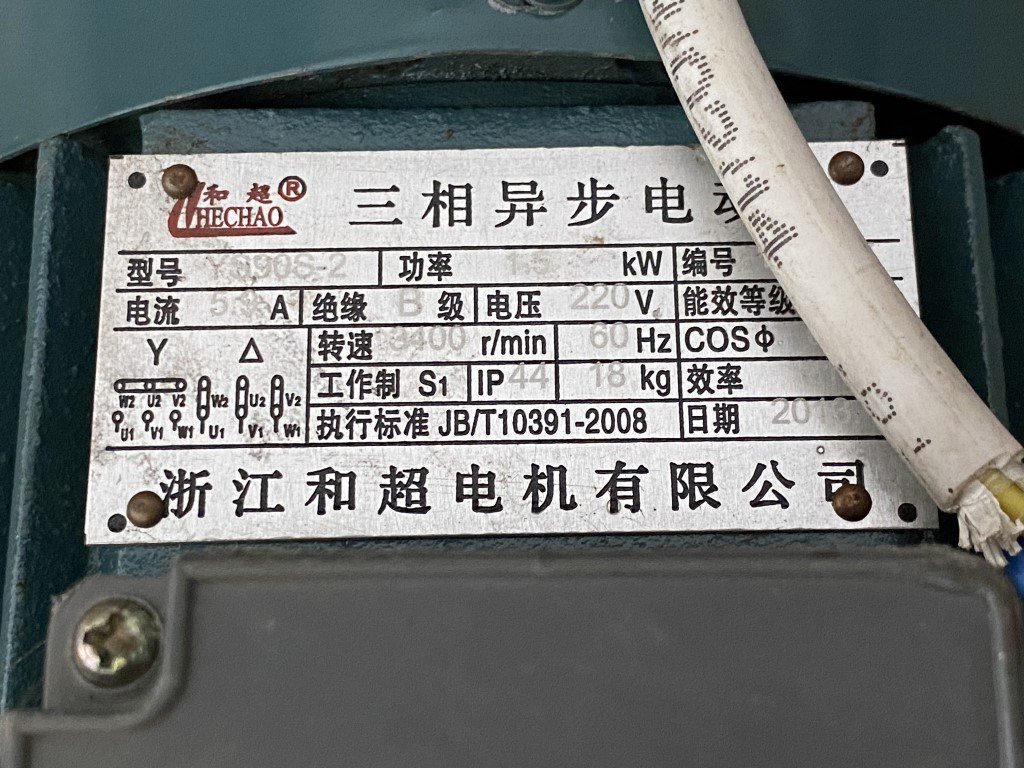

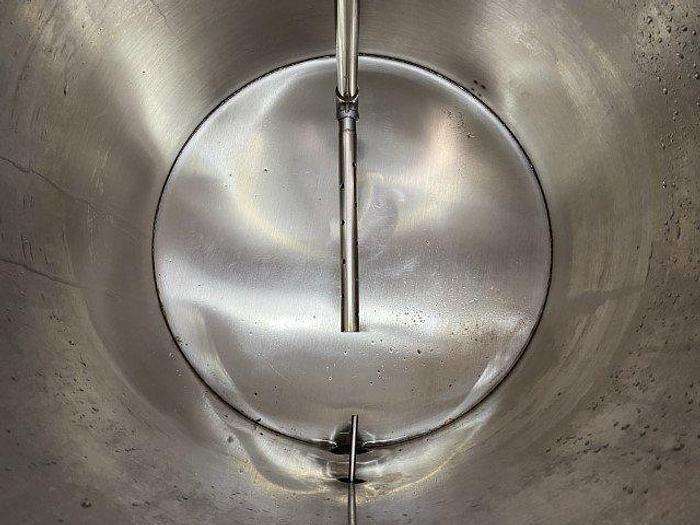

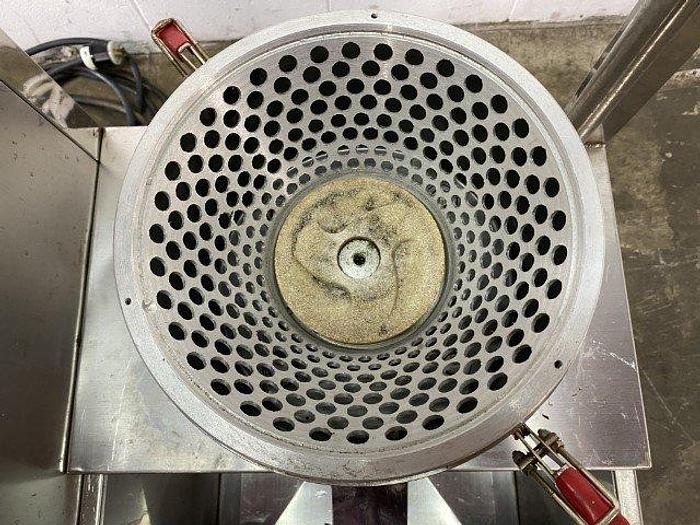

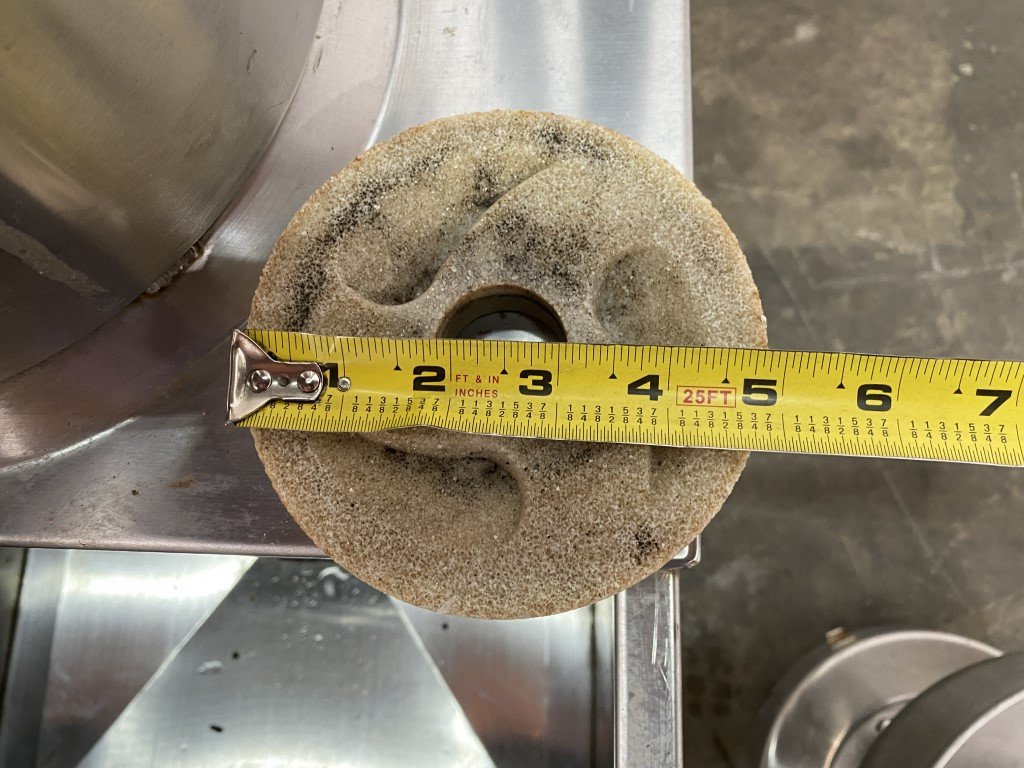

Soy bean grinder and separator that produced soy milk and soy bean pulp (okara). Infeed hopper: 11.75″ diameter x 8.5 deep, straight side 3″, bottom outlet: 1.75: diameter Filter cone: 10.25″ diameter x 6″ deep, with flange: 11″ diameter Grinding stones, made of white corundum: 5″ diameter. Top stone has 1.75″ diameter center infeed. Tub: 10.25″ diameter x 7″ deep Pulp outfeed chute: 9″L x 8.25″W x 3.75″H Spout: 2.25″W x 1.25″H, empties soy milk into holding tank: 18″Lx 12″W x 18″D A Zhongfu 120 watt pump transfers the soy milk to the semi-insulated tank: 20″ diameter x 23″ deep. Grinder powered by a 1.5 kW asynchronous motor. Needs 100 mesh filter for soy milk.

Specifications

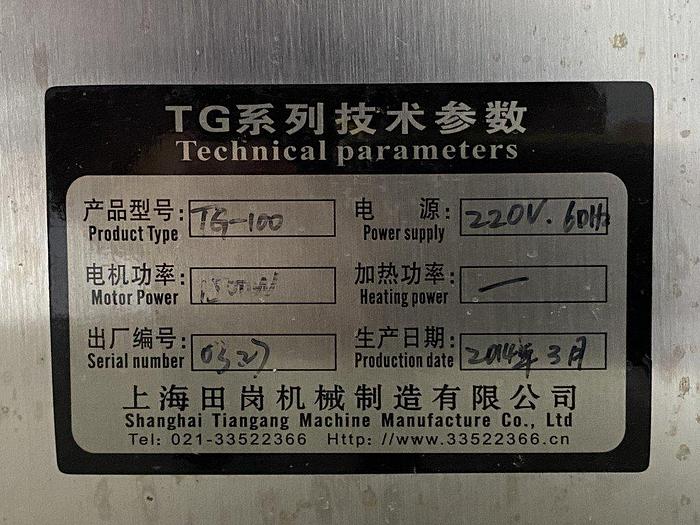

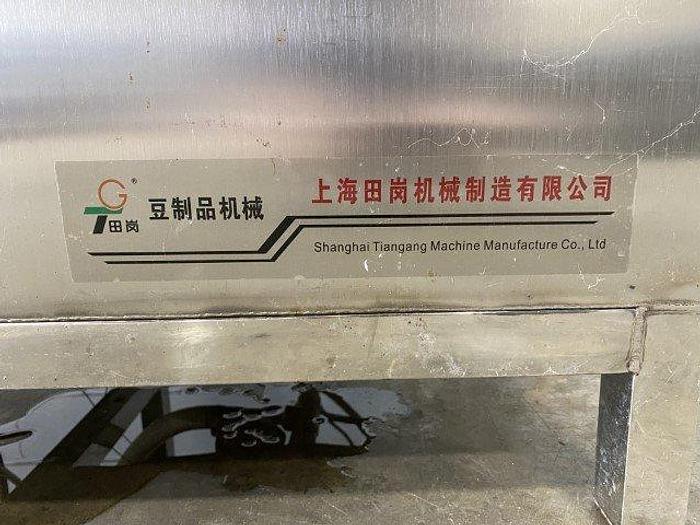

ManufacturerTiangang Machine MFG
ModelTG-100
Year2014
ConditionUsed
Serial Number0327
Stock Number3788
Dimensions (l x w x h)49" x 34" x 62"
Power220 V | 60 Hz | 1.5 kW
Location codeD7
Length (in)49
Width (in)34
Height (in)62
