Bivans Vertuck 74 Cartoner with 570D Top Debosser
Bivans Vertuck 74 Cartoner with 570D Top Debosser
Description

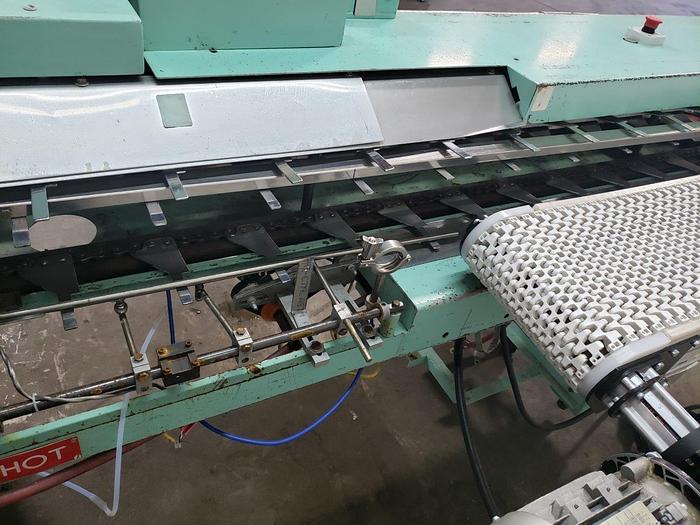

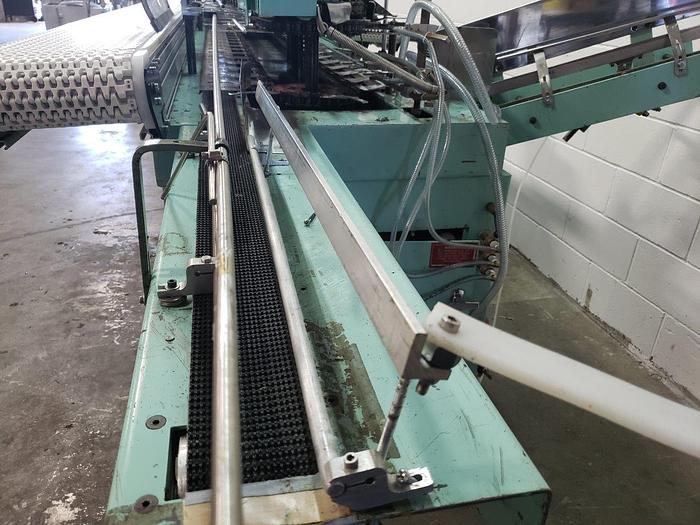

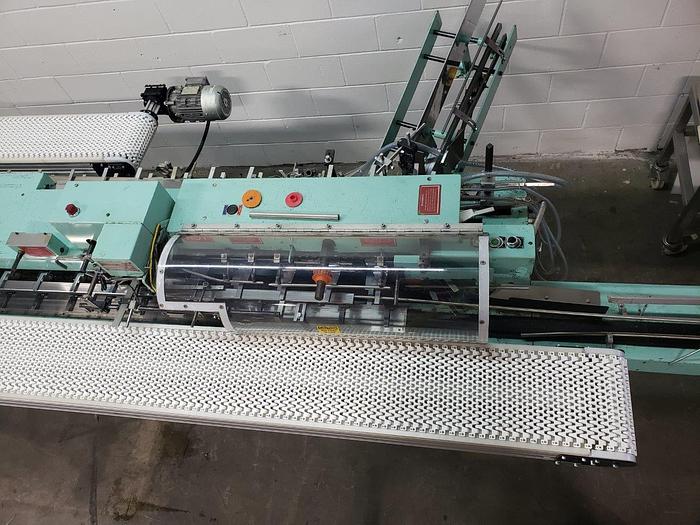

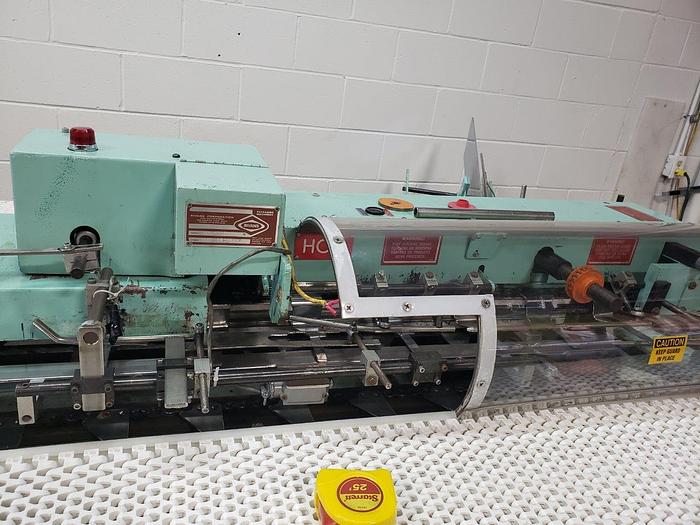

Vertuck 74 Cartoner
A continuous motion, semi-automatic, vertical glue cartoner.

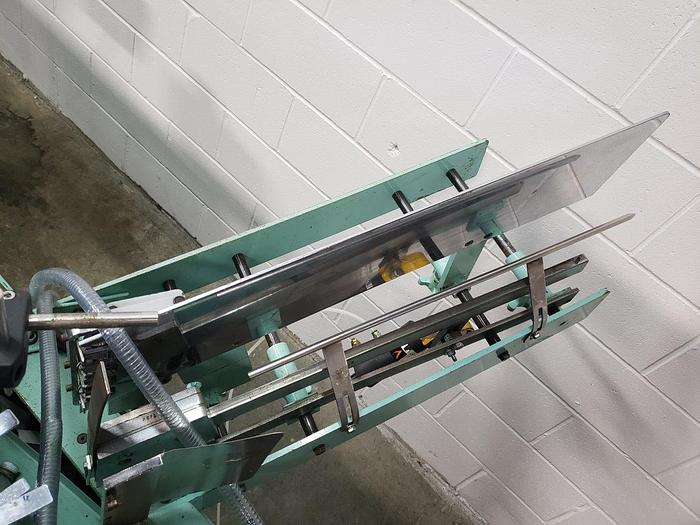

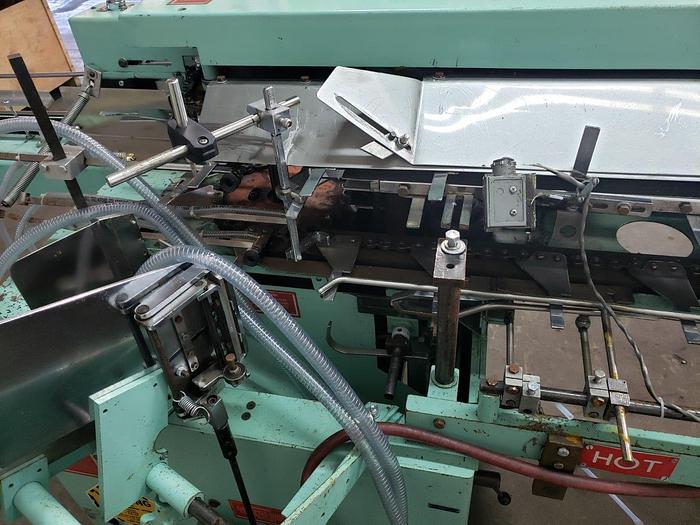

Operation: 1. magazine loads the cartons, 2. bottom flaps are tucked with glue, 3. cartons are filled manually, 4. top flaps are tucked with glue, and date coded.
Output: up to 120 cartons per minute
Carton size range
Min: 7/8″ long x ¾” wide x 2¼” deep
Max: 5″ long x 3½” wide x 10″ deep
Top Debosser 570D
Date codes the top box flap after gluing.

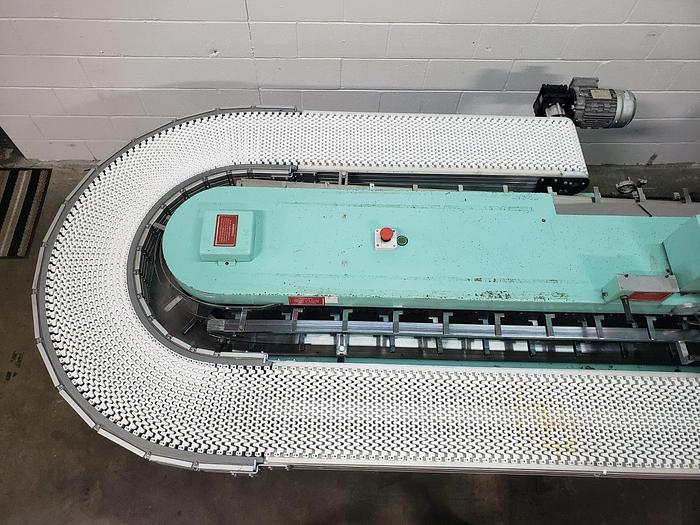

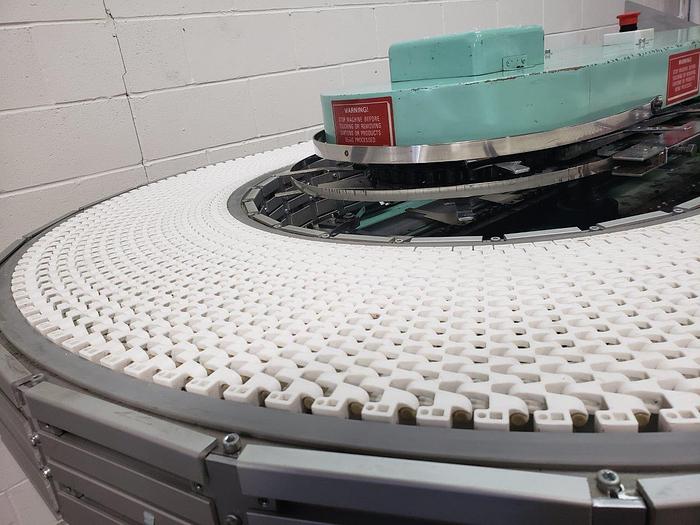

Dorner 5200 Wrap-Around Conveyor
Modular belt: 9¾”W, short end: 42″L, long end: 114″, curve: 48″ diameter, load height: 43″

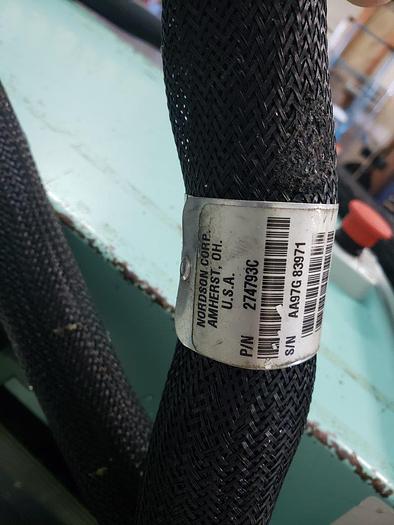

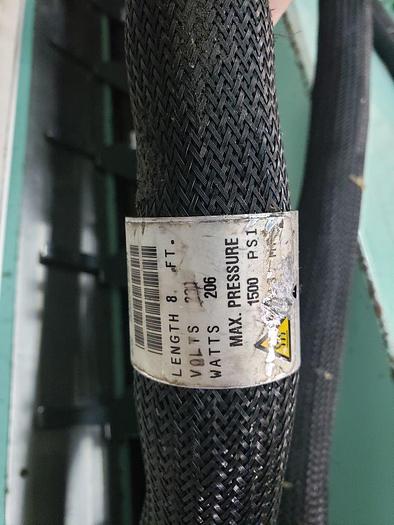

Needs a Nordson Hot Glue System
Specifications
Manufacturer | Bivans |
Model | Vertuck 74 | Top Debosser |
Year | 1988 |
Condition | Used |

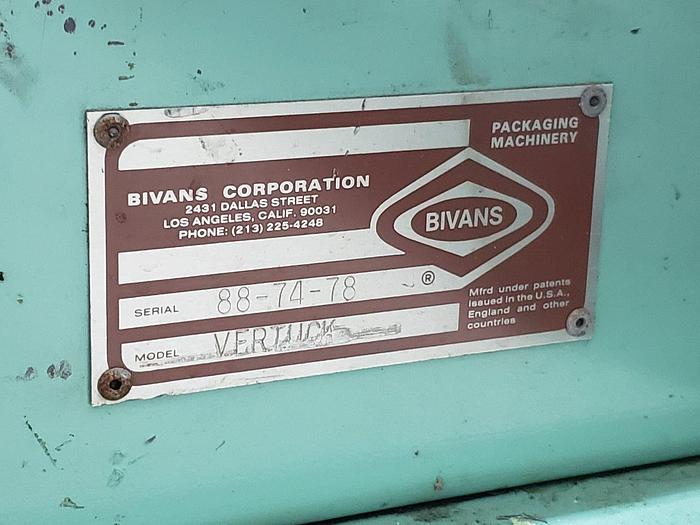

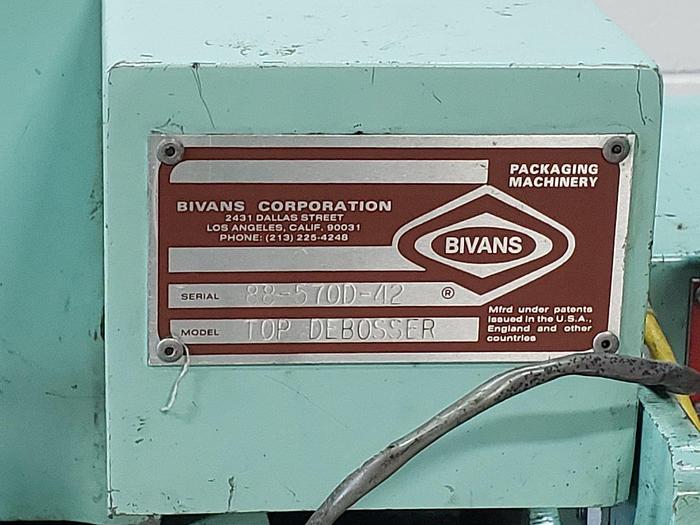

Serial Number | 88-74-78 | 88-570D-42 |
Stock Number | 2343 |
Includes manual | Yes |

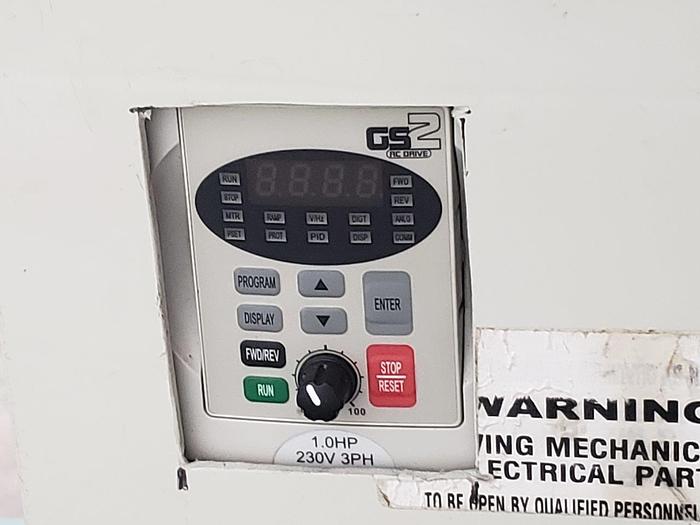

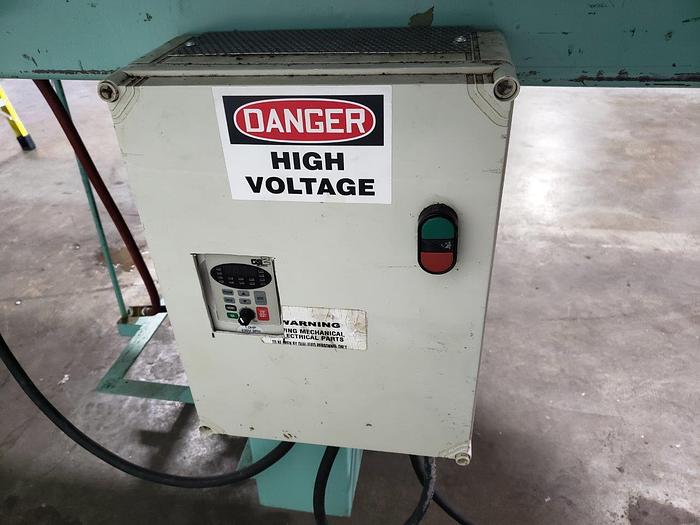

Power | 230 V | 20 A | 3 Phase |
Location code | D8 |
