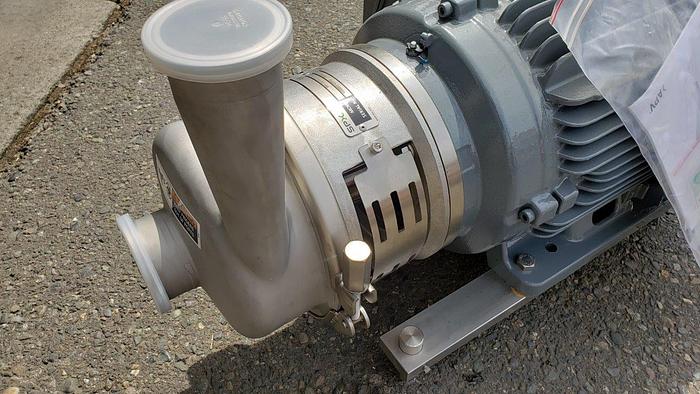

SPXFlow W+ 35/55 Sanitary Centrifugal Pump
Sold
SPXFlow W+ 35/55 Sanitary Centrifugal Pump
Description

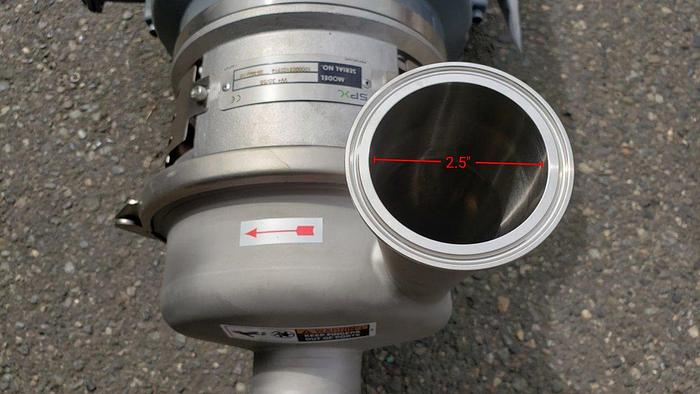

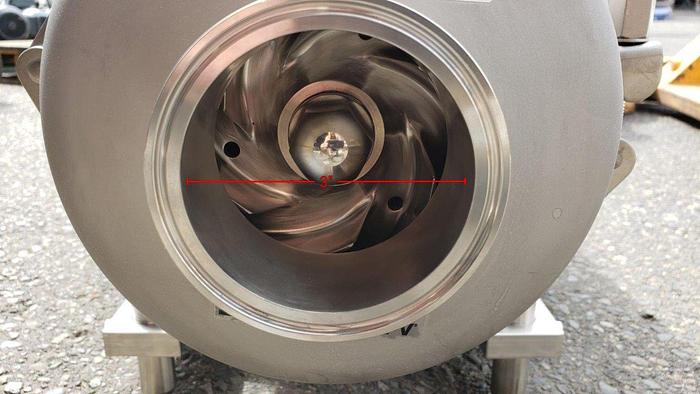

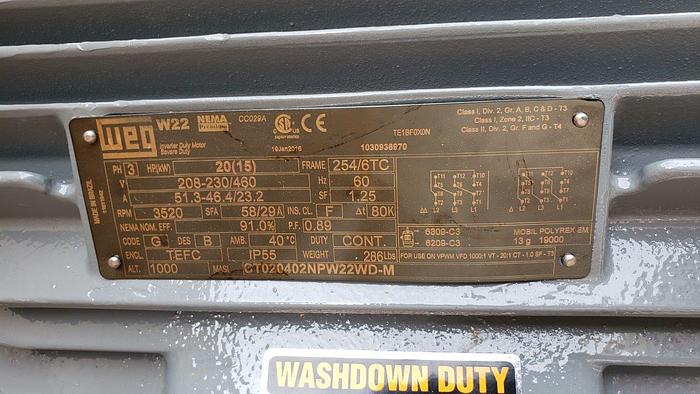

Low viscous fluids enter through the center inlet and flow around the impeller which turns at various speeds. Fluid moves to the outer extents of the impeller vanes by centrifugal force and is directed through the outlet. FEATURES: reliable energy efficient quiet with minimal vibration superior shaft design high pressure capability designed for CIP (clean-in-place) and SIP (sterilize-in-place) 316L stainless steel construction Center inlet 3″, outlet 2½” Impeller 7.1″ Max capacity (gal/h): 11,359 gal @ 1,450 rpm; 22,983 @ 2,900 rpm Max Head (MWC): 10 @ 1,450 rpm; 42 @ 2,900 rpm Powered by a 20(15) Hp WEG W22 NEMA Precision Inverter Duty Motor 1976 A7 / E431 MB
Specifications
Manufacturer | SPXFlow AV |
Model | W+ 35/55 |
Year | 2016 |
Condition | New |
Serial Number | 1000003102814 |
Stock Number | 1976 |
Dimensions (l x w x h) | 34" x 19" x 18.5" |
Power | 208-230/460 V, 51.3-46.4/23.2 A |
Length (in) | 34 |
Width (in) | 19 |
Height (in) | 18.5 |
