Transfer Pump
Transfer Pump
Description

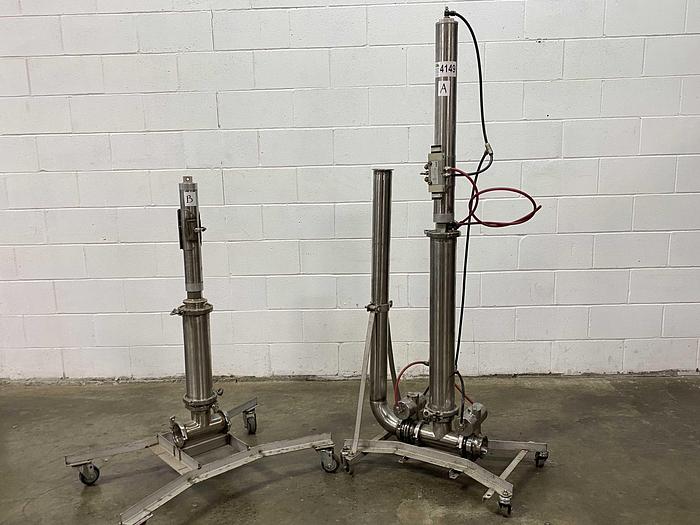

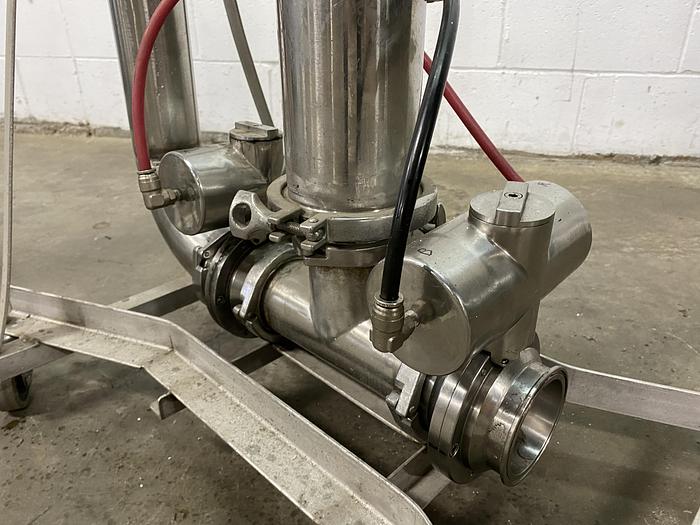

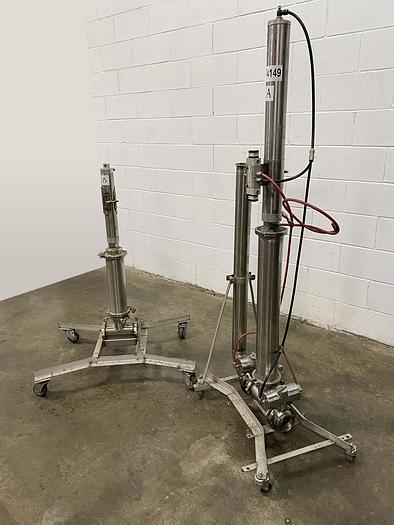

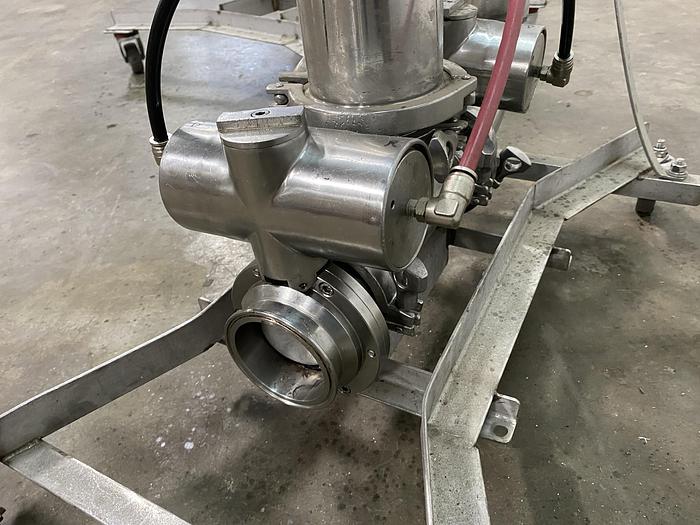

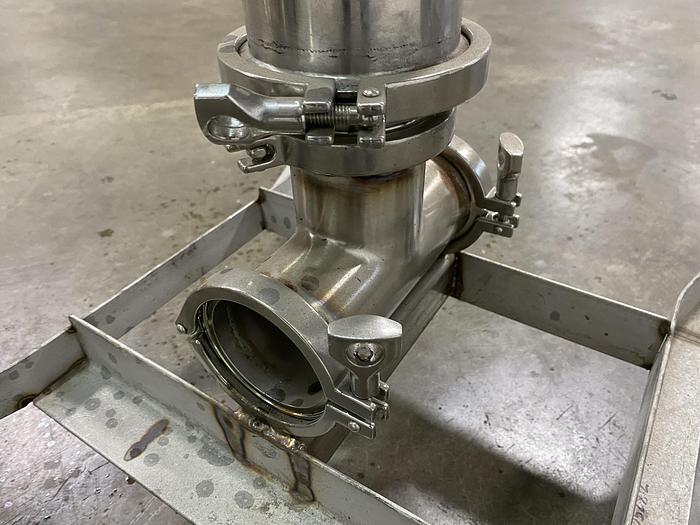

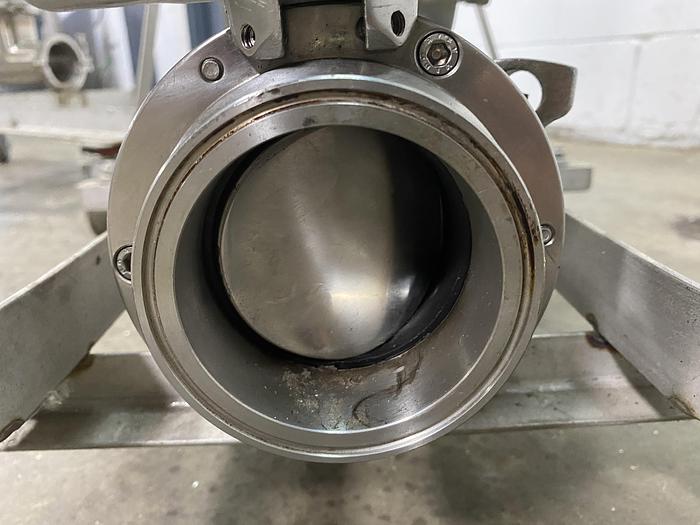

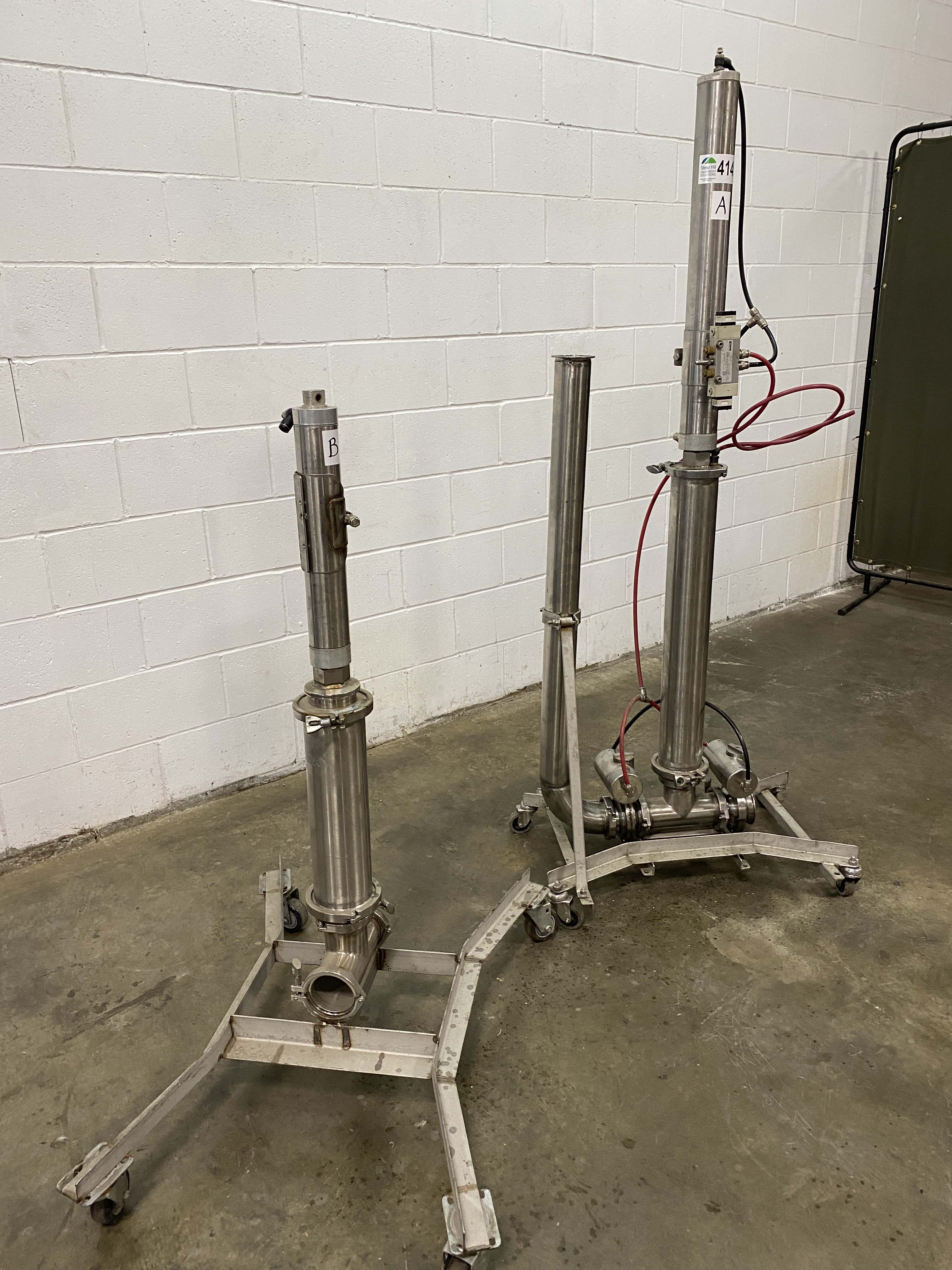

The stainless steel transfer pump A has a pneumatic cylinder on top. a piston in the middle with three-way butterfy-valve assembly at the bottom, and an inlet or outlet pipe attached to the assembly.
A

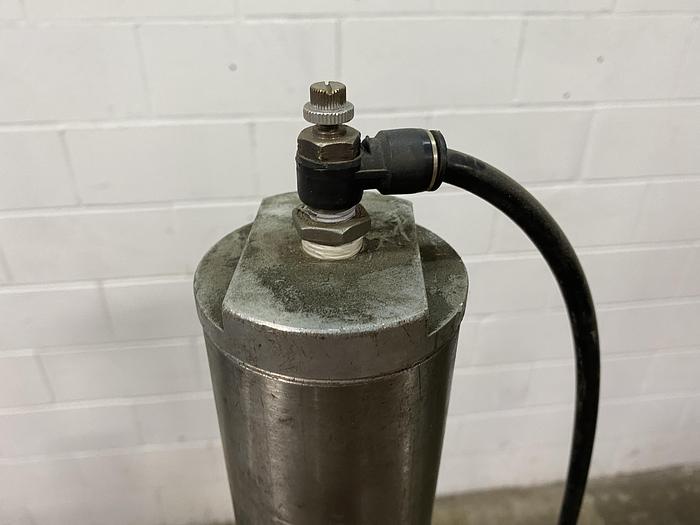

Pneumatic cylinder: 29" Tall
Model: 3000D01-24A
SN: WK-740154-4
Piston: 27.5" Tall
Inlet or outlet pipe: 43" Tall, with

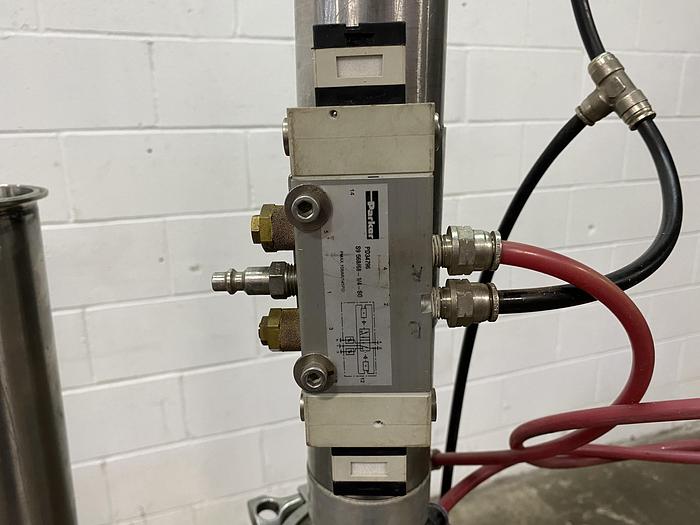

Parker PD34795 control valve with PMAX: 10 bar | 145 psi
B
Transfer pump B is for Parts Only.

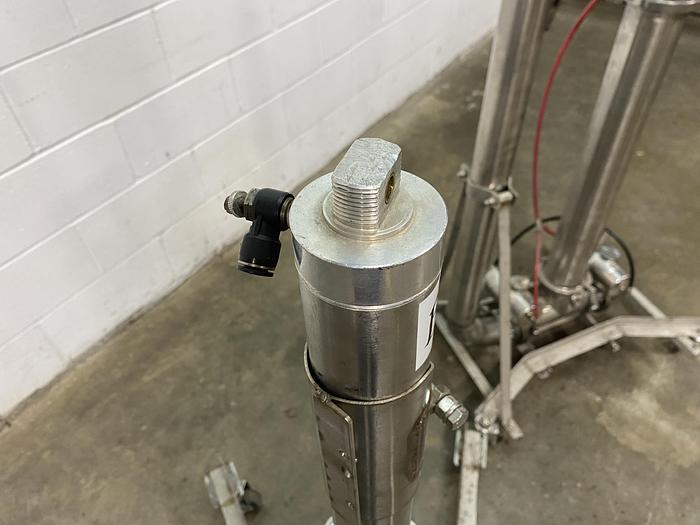

Pneumatic cylinder: 18.5" Tall
Piston 14" Tall

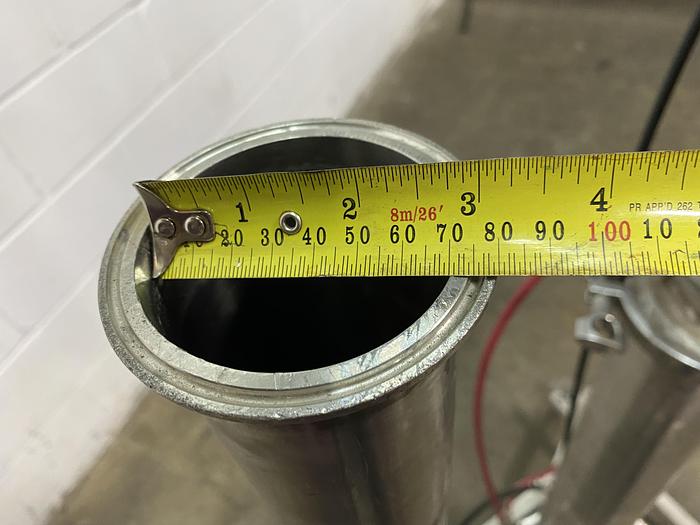

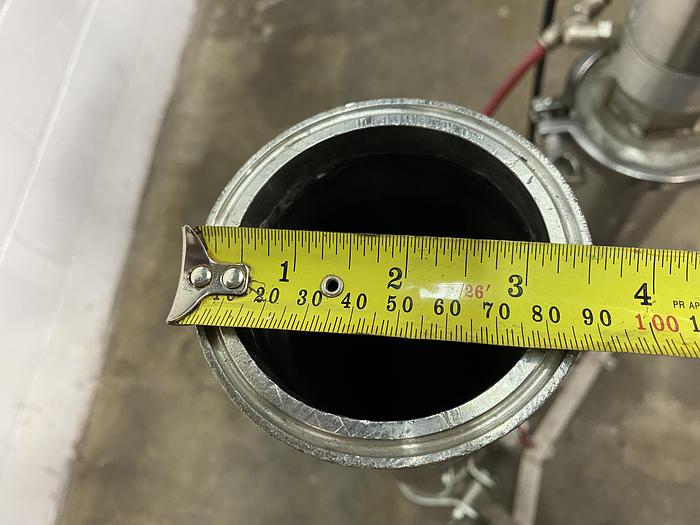

All pipe openings, including three-way valves: 2.75" diameter, with flange 3.5" diameter.
Specifications
| Condition | Used |
| Stock Number | 4149 A,B |
| Dimensions (l x w x h) | 64" x 26" x 71" |
| Location Code | D7 |
| Location code | D7 |
