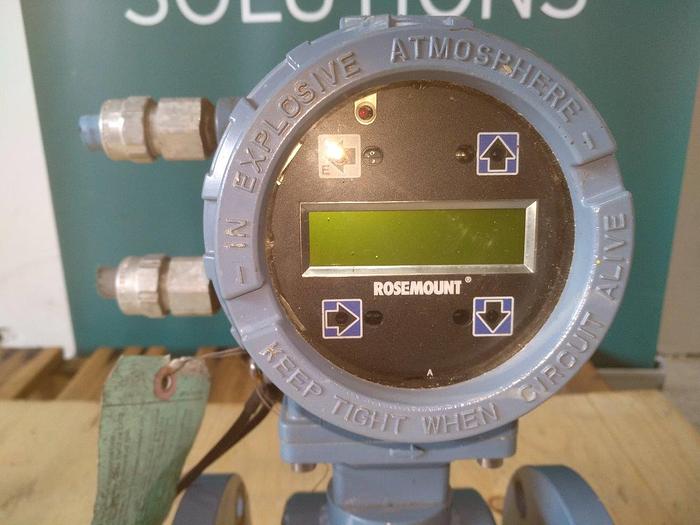

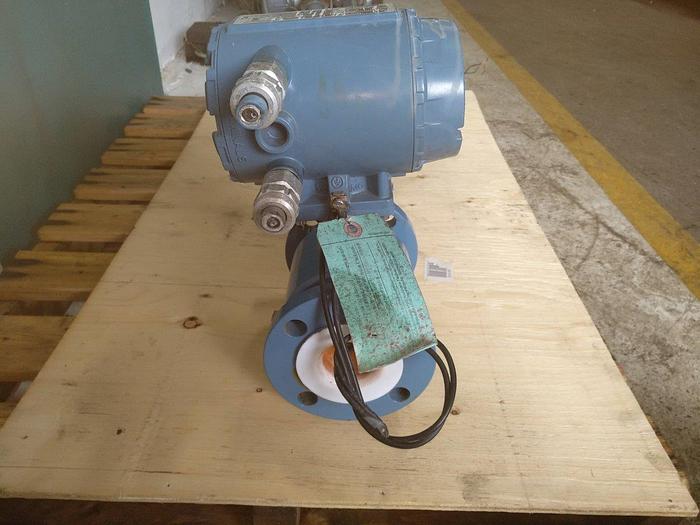

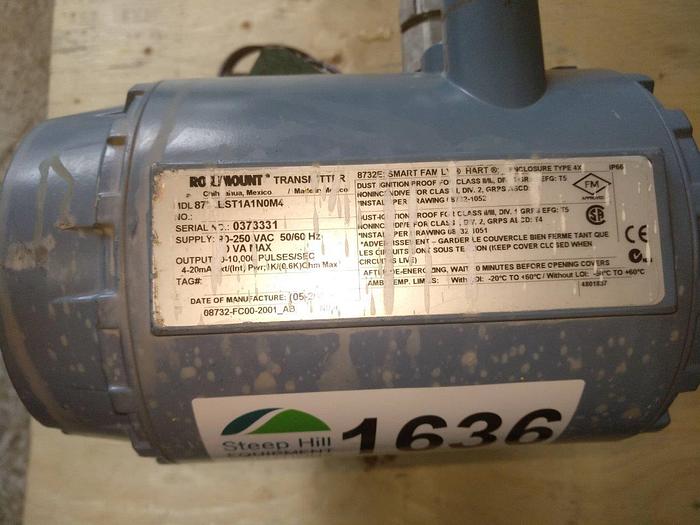

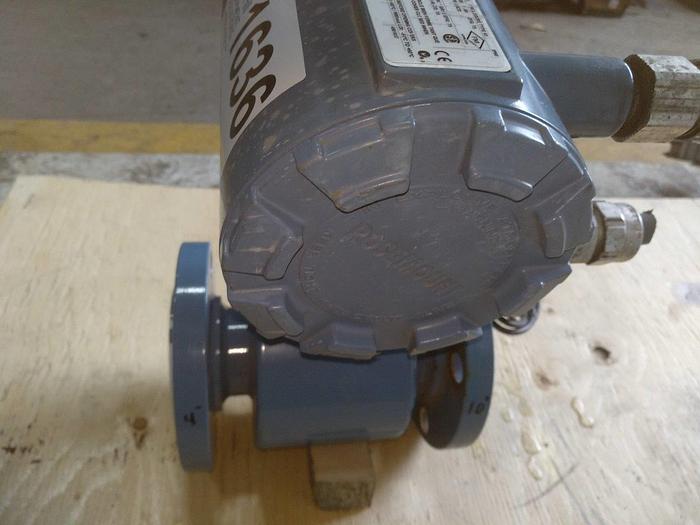

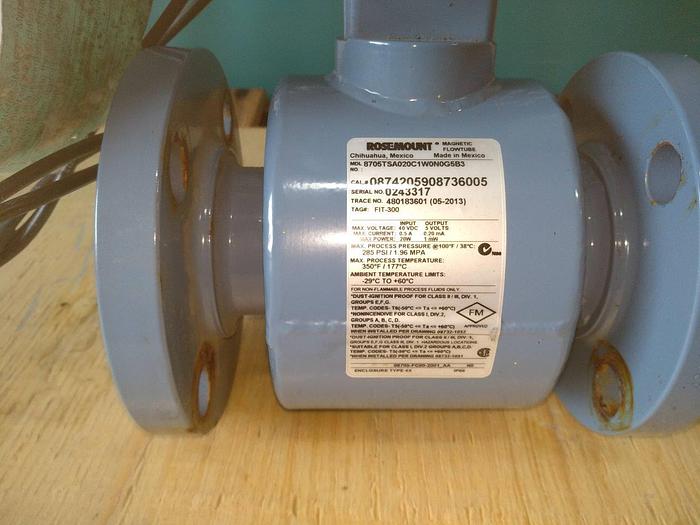

Rosemount Magnetic Flow Meter

2″ Flanged Connection Meter, Transmitter, and Magnetic Flowtube From the manufacturer: Service Conductive liquids and slurries Line Sizes : 2–36 in. (15–900 mm) Rosemount 8705 Sensors are interchangeable with 8732 and 8712E Transmitters. System accuracy is maintained regardless of line size or optional features. Each sensor nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator Interface (LOI) or the Field Communicator. In a FOUNDATION fieldbus environment, the 8732E can be configured using the  DeltaV™ fieldbus configuration tool or another FOUNDATION fieldbus configuration device. No further calibration is necessary. Upper Range Limit 39 ft./s (12 m/s) Process Temperature Limits PTFE Lining –20 to 350 °F (–29 to 177 °C) ETFE Lining –20 to 300 °F (–29 to 149 °C) PFA Lining -20 to 350 °F (-29 to 177 °C) Polyurethane Lining 0 to 140 °F (–18 to 60 °C) Neoprene Lining 0 to 176 °F (–18 to 80 °C) Linatex Lining 0 to 158 °F (–18 to 70 °C) Ambient Temperature Limits –30 to 150 °F (–34 to 65 °C) 1636 – E256 – C1B
